Part #: 011-01054-10

Model: GCU-475

OEM:

Garmin

Desc:

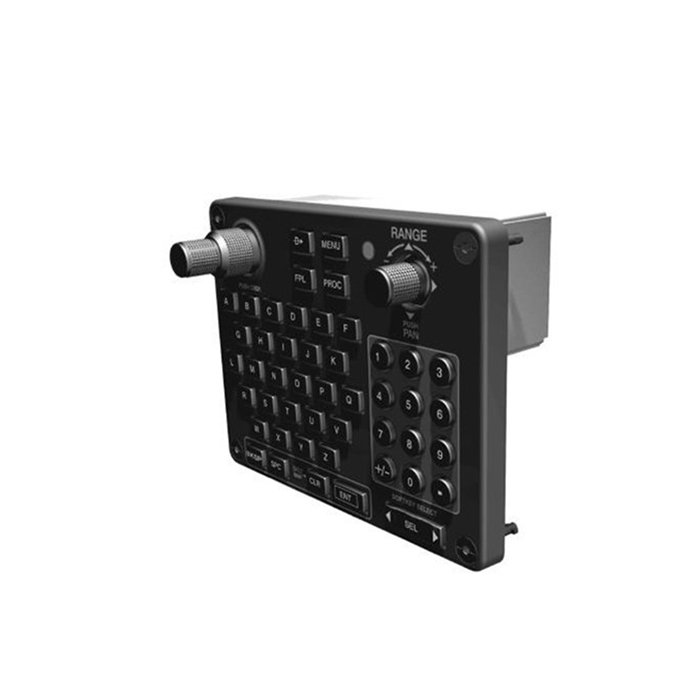

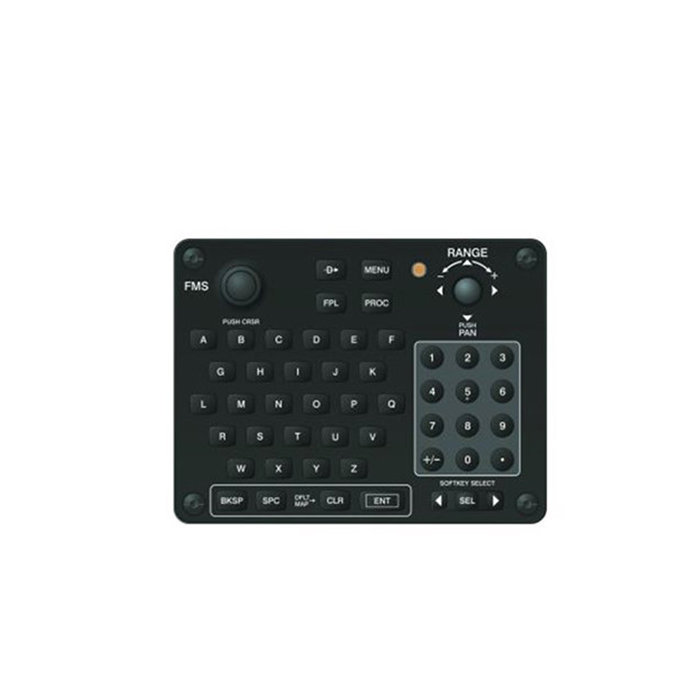

FMS Controller

Part Number :





GCU-475 FMS



FEATURES

  • GCU-47X/485 refers to the Garmin Flight Management System (FMS) Controller used in a Garmin Integrated Flicght Deck
  • The GCU-475, mounts flush to the aircraft instrument panel using four 1/4 turn fasteners



SPECIFICATIONS

WIDTH: 4.90 inches (124.5 mm) DEPTH W/CONNECTOR KIT: 2.31 inches (58.8 mm)
HEIGHT: 3.75 inches (95.3 mm) UNIT WEIGHT W/OUT CONNECTOR KIT: 0.7 lbs (0.27 kg)
UNIT WEIGHT WITH CONNECTOR: 0.8 lbs (0.32 kg) MOUNTING HARDWARE: 0.03 lbs.
Power consumption: (-X0, 220 mA @ 14V, 115 mA @ 28V) (-00, 84 mA @ 14V, 46 mA @ 28V) operating temperature: -45° to +70°
humidity: 95% non-codensening altitude range: -1,500 ft. to 55,000 ft.
Part Number: Description:
010-00359-00 FMS Controller (Catalog PN)
010-00359-10 FMS Controller (Catalog PN)
010-01487-00 FMS Controller (Catalog PN)

011-01054-00 Unit only PN for 010-00359-00
011-01054-10 Unit only PN for 010-00359-10
011-04475-00 Unit only PN for 010-01487-00







Serial # 21805237
Condition SV
Mods None
Tag Date 06/21/23
Shop Garmin
Warranty 6 Months
011-01054-10
- FMS Controller
Price Condition Status
$1,200.00 SV OUTRIGHT 1 IN STOCK
REQUEST SV EXCHANGE 1 IN STOCK
011-01054-00
- FMS Controller
Price Condition Status
REQUEST SV EXCHANGE REQUEST LEAD TIME
011-04475-00
- FMS Controller
Price Condition Status
$2,450.00 SV OUTRIGHT REQUEST LEAD TIME
$995.00 SV EXCHANGE REQUEST LEAD TIME
