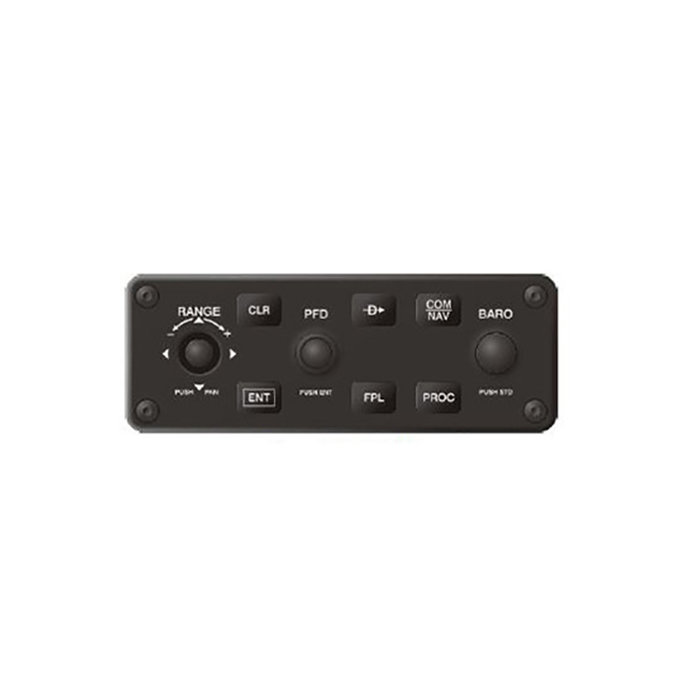

Picture of product GCU-275

Part #: 011-01983-01

Model: GCU-275

OEM:

Garmin

Desc:

FMS Controller

Part Number :



GCU-275 FMS



FEATURES

  • GCU275/47X/485 refers to the Garmin Flight Management System (FMS) Controller used in a Garmin Integrated Flicght Deck
  • Mounts flush to the aircraft instrument panel using four captive screws



SPECIFICATIONS

WIDTH: 5.50 inches (139.7 mm) DEPTH W/CONNECTOR KIT: 3.80 inches (96.5 mm)
HEIGHT: 2.00 inches (50.8 mm) UNIT WEIGHT W/OUT CONNECTOR KIT: 0.6 lbs (0.27 kg)
UNIT WEIGHT WITH CONNECTOR: 0.7 lbs (0.32 kg) MOUNTING HARWARE: 0.03 lbs (0.01 kg)
Power consumption: (160 mA @ 14V, 85 mA @ 28V) OPERATING TEMPERATURE RANGE: -45° to +70°
HUMIDITY: 95% non-codensening  altitude range: -1,500 ft. to 55,000 ft.
Part Number: Description:
011-01983-01 FMS Controller









011-01983-01
- FMS Controller
