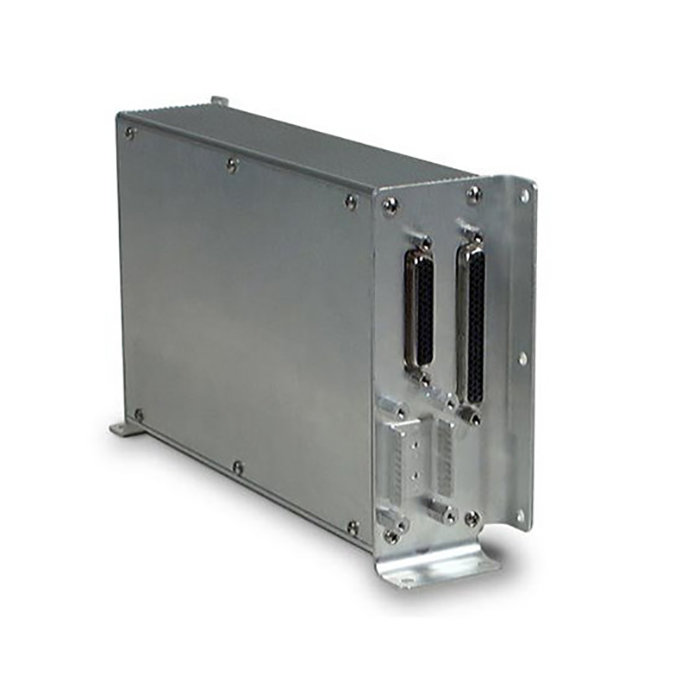

Part #: 011-00417-10

Model: GAD-42

OEM:

Garmin

Desc:

Aviation Interface Adapter

Part Number :



GAD-42





FEATURES

  • King serial data, clock, and sync output for distance display on distance indicators with a King serial interface
  • RS-422 serial data input from a Rockwell Collins digital course selector
  • RS-422 serial data NAV/ILS output for Rockwell Collins EFIS 85/86
  • Low speed/High Speed conversion (ARINC 429)
  • ARINC 407 format 3-wire XYZ synchro Heading input
  • ARINC 407 format 3-wire XYZ synchro or 4-wire Sin/Cos Selected Course Drive
  • ARINC 407 format 3-wire XYZ synchro or 4-wire Sin/Cos Selected Course Input
  • ARINC 407 format 3-wire XYZ synchro or 4-wire Sin/Cos GPS RMI/OBI output
  • ARINC 407 format 3-wire XYZ synchro or 4-wire Sin/Cos NAV RMI/OBI output
  • ARINC 561 format analog roll steering output for use with flight control systems
  • ARINC 561/568 distance display on compatible indicators
  • ARINC 561 EFIS interface for Rockwell Collins EHSI 74/85/86
  • ARINC 545/KIFIS XYZ synchro or ARINC 565 AC/DC TAS input
  • -10 version adds XYZ barometric corrected altitude source and DC static air temperature inputs; draws less power than -00 also



SPECIFICATIONS
weight: 2.0 lbs. (-00), 2.1 lbs. (-10) mounting: Horizontal or Vertical
temperature: 55ºC to +70ºC (Operating) -55ºC to +85ºC (Storage) certifications: FAA TSO-C40c FAA TSO-C129a – A1 RTCA/DO-160D RTCA/DO-178B level C
dimesions: 9”L x 5.4”W x 2.1”H humidity: 95% Non-Condensing
altitude range: 15,000 ft to +50,000 ft power requirements: 11-33v DC, Not to exceed 18 watts without super flag outputs active, or 85 watts with all four super flag outputs sourcing maximum current at maximum aircraft voltage, 26v AC, 400 Hz Reference <0.1va





Part Number: Description:
010-00154-10 Unit Only Catalog PN
010-00154-11 Standard Unit with Kit, Catalog PN
011-00417-00 Unit Only PN
011-00417-10 Unit Only PN, see added features above



Serial # 99613413
Condition SV
Mods None
Tag Date 01/23/24
Shop Garmin
Warranty 6 Months
Serial # 99613891
Condition SV
Mods None
Tag Date 01/23/24
Shop Garmin
Warranty 6 Months
011-00417-00
- Interface Adapter (Unit Only)

NSN: 5895-01-534-0706

Price Condition Status
$1,795.00 SV OUTRIGHT 3 IN STOCK
$1,350.00 SV EXCHANGE 3 IN STOCK
011-00417-10
- Interface Adapter (Unit Only)
Price Condition Status
$1,750.00 SV OUTRIGHT 2 IN STOCK
$1,350.00 SV EXCHANGE 2 IN STOCK
010-00154-10
- Interface Adapter (Unit Only)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00154-11
- Interface Adapter, Standard
Price Condition Status
RFQ RFQ RFQ

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
