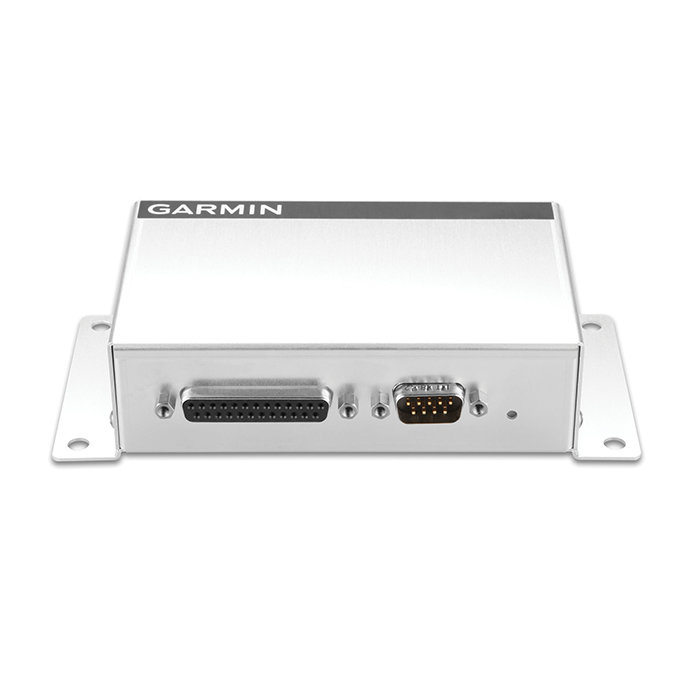

Picture of product GAD-29B

Part #: 010-01172-11

Model: GAD-29B

OEM:

Garmin

Part Number :





GAD-29B



FEATURES

  • GAD 29/29B is a light-weight, remote-mount unit that allows interface to IFR navigators such as the GNS and GTN series
  • 25 pin D-sub connector and a 9 pin D-sub connector
  • Contains the same characteristics and function of the GAD 29 as well as providing autopilot heading and course datum to allow a G5 DG/HSI to be interfaced with autopilots
  • 14VDC or 28VDC Power
  • Receive OAT information over the CAN bus to be converted to ARINC 429 data and transmitted to the navigators
  • These connectors provides the following functionality:

         ° 2 Low Speed ARINC 429 Transmitters
         ° 4 Low Speed ARINC 429 Receivers
         ° 1 CAN Network Port
         ° Analog Outputs
         ° Excitation Pass Through





SPECIFICATIONS
WIDTH: 6.10 Inches height: 1.48 Inches
depth: 5.54 Inches unit weight: 0.40 lbs.
Power requirements: Average/Max Current Draw @14 VDC/ .200-Average/Max Current Draw 28 VDC/ .100 A


Part Number: Description:
010-01172-11 Catalog P/N
011-03236-11 Unit Only PN on dataplate





010-01172-11
- Interface Adapter (Unit Only)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
