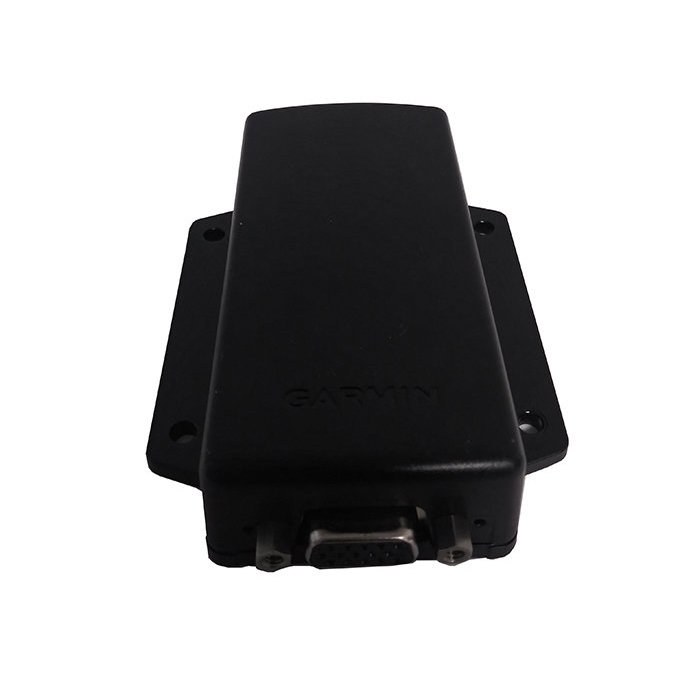

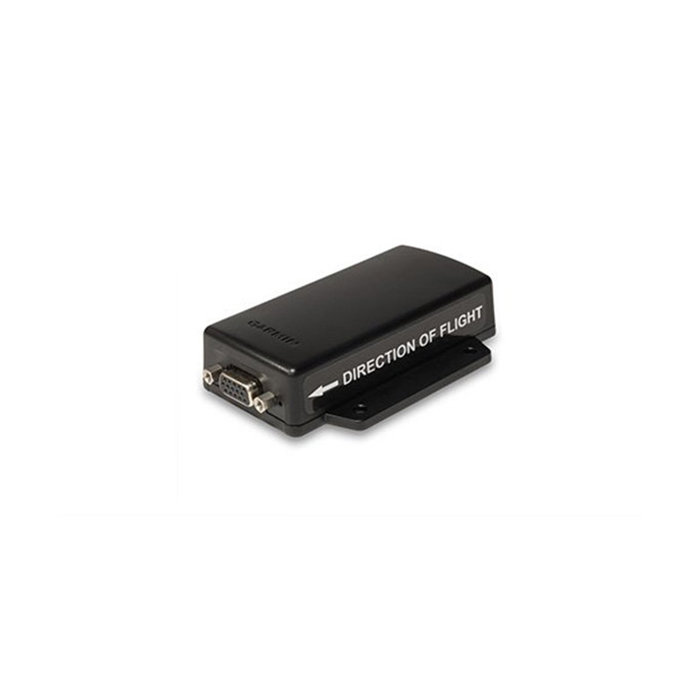

Part #: 010-01194-01

Model: Flight Stream 110

OEM:

Garmin

Desc:

Wireless Bluetooth Gateway

Part Number :





Flight Stream 110



FEATURES

  • The Flight Stream 110 offers GPS, weather and traffic streaming
  • Simplifies and streamlines your cockpit management
  • Works with the Garmin Pilot, ForeFlight Mobile and FltPlan Go apps as well as aera 660/795/796
  • Enables traffic and weather from your avionics to be viewed on your portable device
  • Easily load flight plans – including airways – from your compatible mobile app to your GTN 750/650 series
  • Provides GPS location (Flight Stream 110)



SPECIFICATIONS

Width: 2.74" (7.0 cm) Height: 0.92" (2.3 cm)
LENGTH: 3.93" (10.0 cm) Unit weight: 0.156 lbs (0.07 kg), excluding connector kit; 0.27 lbs (0.12 kg), including connector kit
OPERATING TEMPERATURE RANGE: -20° C to +70° C Input voltage range: 9.5 to 33.0 VDC
Software compliance: RTCA DO-178B Level E Environmental compliance: RTCA DO-160F
TSO compliance: TSO-C157, DO-267A POWER SPECIFICATIONS : Max Current @ 28 VDC: 50  mA, Max current @ 14 VDC: 100 mA
bLUETOOTH VERSION:  3.0 BLUETOOTH TRANSMITTER POWER: 4 dBm (2.5 mW)
BLUETOOTH CLASS: 2 Effective unimpeded range: 33 ft (10 m)



Part Number: Description:
010-01194-01 Wireless Bluetooth Gateway



010-01194-01
- Wireless Bluetooth Gateway
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST RFQ REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
