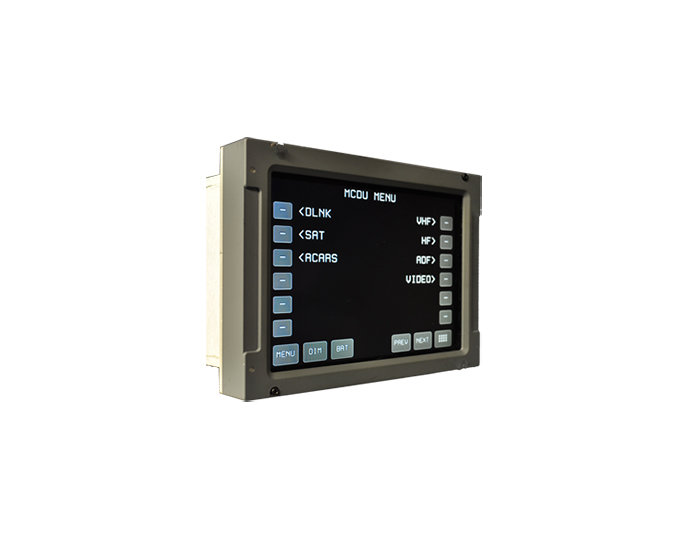

Picture of product TouchDU

Part #:

Model: TouchDU

OEM:

Gables

Desc:

Touchscreen Display Unit

Part Number :
Gables Engineering

TouchDU



FEATURES

  • TouchDU is a dedicated touchscreen display for ARINC 739 Subsystems such as ACARS, CPDLC, Satcom and DFDAUConfigurable flight deck solution for a wide variety of aircraft
  • 4 ARINC 429 inputs and 11 discrete inputs
  • 3 ARINC 429 outputs and 4 discrete outputs
  • 1 RS-232 input port and 1 output port (maintenance port)
  • 3 video inputs (variant dependent)
  • VHF, HF, ADF radio tuning (variant dependent)
  • DO-178B certifiable reconfigurable display software platform
  • Subpixel anti-aliasing for exceptional image quality
  • Built-in-test (BIT) with maintenance pages for enhanced diagnostics
  • Modular construction contributes to economical maintenance
  • Liquid splash-proof design
  • LED backlighting for higher reliability
  • Ambient light sensors
  • MTBF (Calculated): 20,000 operating hours
  • Electronic Checklist
  • Video Surveillance Display
  • Dataloader User Interface


SPECIFICATIONS

Dimensions: 4.500 (height) x 5.735 (width) x 2.500 (max depth) inches, excluding rear connector certification:  TSO-C41d, TSO-C113a, TSO-C169a, TSO-C170
WEIGHT: 2.8 lbs (Max) color: Boeing Brown BAC #8328, Non-reflective Gray FED STD 595b36118, Non-reflective Black FED STD 595b37038
Calculated MTBF: 20,000 operating hours COMPLIANCE:

RTCA/DO-160G (Environmental), RTCA/DO-178B Level C (Software), RTCA/DO-254 Level C (Hardware), ARINC 429, ARINC 739A

power: Power – 115 VAC or 28 VDC, 14 Watts (max), Lighting*(LEDs) – 5V AC/DC variable, *Minimal current required –only used for brightness level monitoring display: Resolution – VGA -640 (W) x 480 (H), Screen size (diagonal) – 5.7 inches, Pixel configuration – R,G,B stripe, Luminance 120foot Lamberts, LED lighting, Viewing angle – +/-80 degrees (horizontal), +80/-60 degrees (vertical), Contrast ratio – 500:1 (typical),Touch screen – 5-wire resistive, GFG construction
cooling: Passive, no forced air required
Part Number: description:
G7321-01 Touchscreen Display Unit
g7321-11 Touchscreen Display Unit
 g7321-131 Touchscreen Display Unit
 g7321-132 Touchscreen Display Unit
g7321-31 Touchscreen Display Unit
g7321-32 Touchscreen Display Unit



G7321-01
- Touchscreen Display Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
G7321-11
- Touchscreen Display Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
G7321-122
- Touchscreen Display Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
G7321-131
- Touchscreen Display Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
G7321-132
- Touchscreen Display Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
G7321-31
- Touchscreen Display Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
G7321-32
- Touchscreen Display Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
