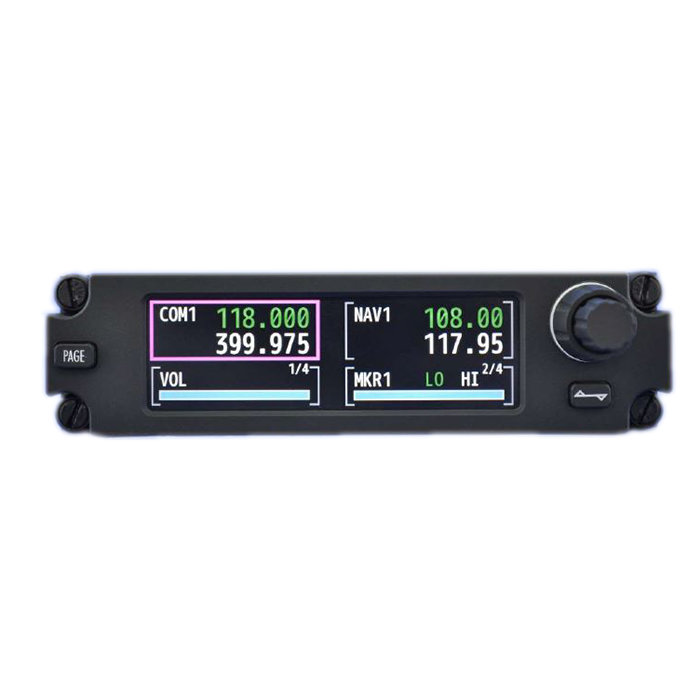

Picture of product G7324
Model: G7324
Desc: Touchscreen Radio Controller
OEM: Gables
Part Number :

Gables Engineering Logo







FEATURES



  • Generic, reconfigurable, display controller
  • Supports Genesys GDR family of radios
  • Controls VHF/UHF COM, VOR/ILS and
  • Marker Beacon
  • Touchscreen display
  • Rotary encoder with integrated pushbutton
  • Field programmable software updates through
  • RS-232 port
  • 2 RS-232 input / output ports
  • 4 ARINC 720 input / output discretes
  • LED backlighting for higher reliability
  • NVIS option available (variant dependent)
  • MTBF (Estimated): 20,000 operating hours
  • Field configurable parameters through panel only:
  • VHF
  • Extended VHF
  • UHF
  • Squelch Level
  • Guard Frequency Enable
  • NAV (VOR/ILS)
  • DME Hold
  • Marker
  • Audio Mode (Voice/Ident) Filter
  • Volume
  • Concentric Pushbutton Alternative
  • Manual Dimming



SPECIFICATIONS

WEIGHT: 0.5 lbs (max) Dimensions: 1.485 in (height) x 5.735 in (width) x 0.376 in (max depth), excluding rear connector
Power: 28 VDC, 10 Watt (max) Display Backlighting & Panel Lighting: 0-5 VAC/DC or 0-28 VDC
Resolution: QVGA Active area (diagonal): 3.53 inches
Pixel configuration: R,G,B stripe Luminance: 120 foot Lamberts, LED lighting
Viewing angle: +/- 50o (horizontal), +/- 50o (vertical) Touch screen: 4-wire resistive, F-G construction
Cooling: Passive, no forced air required Connectors: J1 Mating: MS3476L14-19S or equivalent 19 pin connector




Part Number Description
G7324-01 Touchscreen Radio Controller
G7324-10 Touchscreen Radio Controller











G7324-01
- Touchscreen Radio Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
G7324-10
- Touchscreen Radio Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
