Part #:

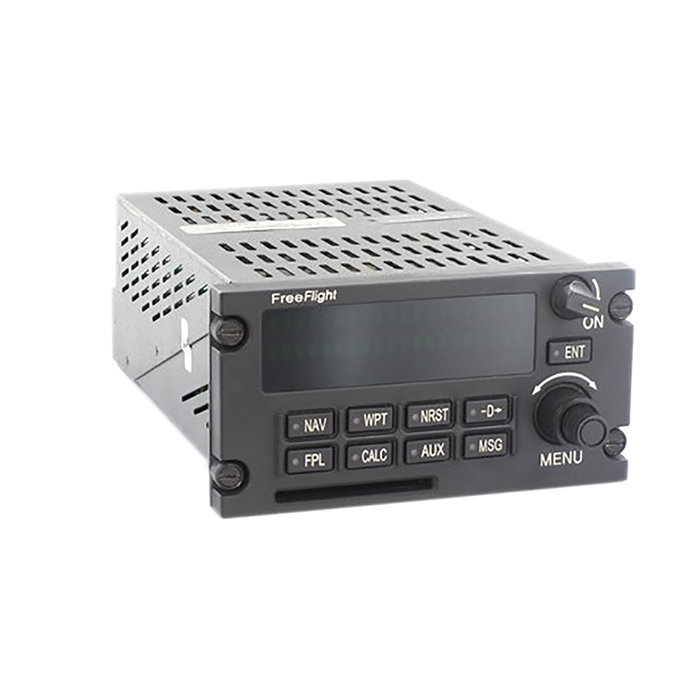

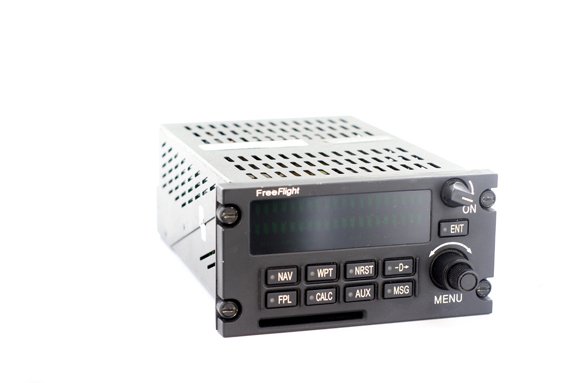

Model: 2101 I/O Approach +

OEM:

FreeFlight

Desc:

IFR GPS Receiver

Part Number :



2101 I/O Approach Plus
FEATURES
  • GPS receiver certified for supplemental enroute, terminal and approach IFR operations
  • Available with optional search & rescue software
  • DZUS Mount
  • FDE certified for primary means oceanic/remote operations
  • EGPWS/TAWS interface
  • Certified for European B-RNAV applications for corporate, helicopter and regional commuter aircraft
  • Ultra high contrast display for maximum sunlight readability
  • Intuitive automatic sequencing feature provides improved course guidance through entire approach
  • Easy to use emergency search function
  • GPS receiver continuously checks accuracy using RAIM (Receiver Autonomous Integrity Monitoring)
  • 12 channel receiver with low susceptibility to comm radio jamming and interference
  • Holds up to 250 user waypoints and flight plans with 40 waypoints each
  • 20 nearest airport function
  • Airwatch restricted airspace warning system
  • Provides RS-422 serial output for easy interfacing
  • Simplified course reversal procedures
  • Flash memory card for software upgrading
  • Configuration data protection from inadvertent operator use
  • Available with North American, Eurasian, or Pacific/South American Datacard that can be swapped in flight
  • Available with standard ARINC antenna or high speed rate antenna
  • NVG Compatible (optional)
  • Certified to TSO C-129 (A1)
  • Similiar to 2101 Approach Plus but also includes extensive inputs/outputs for various systems (see below)
  • -32/-33 fit, form, function interchangeable with -02/-03; hardware change unit due to obsolescence issue
  • Click Here to download the 2101 I/O Approach Plus Pilots Guide
SPECIFICATIONS
Dimensions: 5.75"W x 7.68"D x 3.0"H Weight: 3.25 lbs.
Power: 10-32 VDC Temperature: -20 to 55C
Altitude: Up to 50000 ft. Acquisition Time: 1.5 to 3.5 minutes
Position Update: Five times per second Accuracy: 15 meters RMS
ARINC Inputs: ARINC 407 (heading, altitude, and TAS) ARINC 545/565 (TAS- AC & DC) ARINC 419/429 (air data, heading, fuel) Serial RS-232/422 (air data) Discrete Inputs: Altitude valid, synchro valid, TAS valid, oleo
ARINC Outputs: ARINC 407 Synchros (three synchors, independently programmable) ARINC 419/429 (EFIS flight plan overlay) ARINC 419/429 (FMS GPS position both ARINC and GAMA labels) ARINC 419/429 (EGPWS/TAWS software- optional) Serial RS-232/422 (differential data logging) Other Outputs: Discrete -steering valid, synchro valid Composite roll steering (393 mV/degree output Analog deviation (crosstrack, glideslope)
Part Number: Description:
81440-02-241X black faceplate. Replaced by 81440-32-XXXX
81440-03-241X gray faceplate. Replaced by 81440-33-XXXX
81440-12-241X black faceplate
81440-32-241X black faceplate
81440-33-241X gray faceplate
81440-42-241X NVG, black faceplate
*X Indicates Software Version - Click Here to view all part numbers.



81440-02-241D
- IFR GPS Receiver (unit only)

NSN: 5826-01-494-8359

Price Condition Status
RFQ RFQ RFQ
81440-02-241Q
- IFR GPS Receiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
81440-03-241Q
- IFR GPS Receiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
81440-32-241Q
- IFR GPS Receiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
81440-33-241P
- IFR GPS Receiver (Gray)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Yes, FreeFlight and Jeppesen have developed a "4MB Upgrade Program" for the Approach & Approach Plus systems.

The upgrade will entail a minor hardware modification, software upgrade, and a higher capacity 4MB data card. With this upgrade, pilots will have continued access to the Jeppesen NavData©.

Approach and Approach Plus model upgrades must be completed by June 4, 2009 to be able to continue to receive Jeppesen NavData© services.

This upgrade is applicable to all FreeFlight Systems TSO-approved Approach and Approach Plus GPS Navigation Management Systems (including I/O models) and equivalent legacy equipment with the Trimble name. Including: TNL 2000 Approach & Approach Plus; FreeFlight / Trimble 2101 & 2101 I/O Approach & Approach Plus.
Newer FreeFlight 2101 I/O Approach Plus models ending in -32, -33 or -42, with MOD 14 marked out, have already received the hardware modification and may be updated in the field.

The "4MB Upgrade Program" enables customers to contact their dealer directly to arrange for your systems to be returned to the factory for the necessary hardware, software upgrades & new data card. Factory pricing will vary depending on upgrade requirements. Contact Southeast Aerospace for more information on your upgrade options.

To provide further information, FreeFlight has released Service information letters, SIL FFS02 & FFS03, as well as FAQs.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

Both dash numbers are Black, Non-NVG front panel units; however -02 has GPS CCA P/N 30212 and -32 has GPS CCA P/N 84588. Parts obsolesce required the change of the CCA card and to indicate that change, the part number was changed.

There is no difference in function of the two units.
Any unit with the Plus designation has a 12 channel GPS receiver. Any unit without the Plus designation has a 9 channel GPS receiver.
