Part #: FD90AID-10-B-SW
NSN: |
|
OEM: |
FDS |
Desc: |
10.2 Cockpit LCD - 90deg bottom mount - Swivel |
Select part number above to view pricing and availability.
| Price | Condition | Status | More Info | |
|---|---|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|

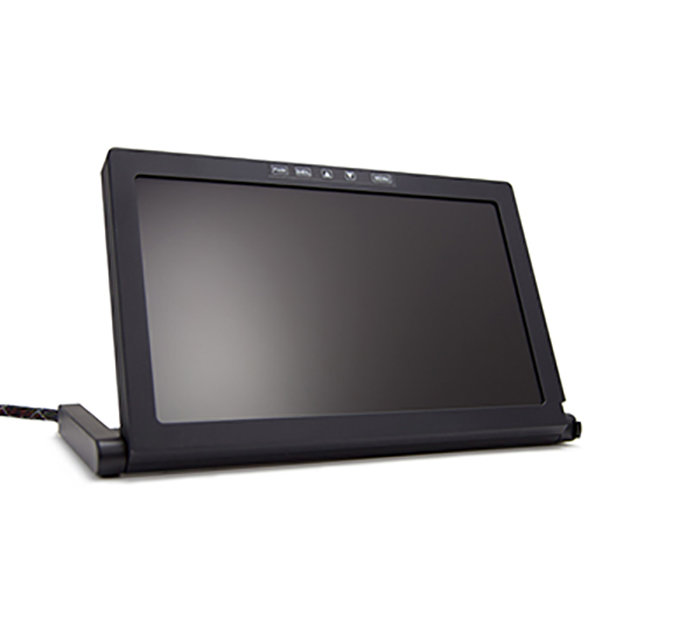

- The FD90AID-10 is a 10” Flip Down Controller, which creates panel space where none previously existed
- This Rugged LCD Monitor provides an excellent opportunity to bring EVS video, satellite weather, or any other VGA Composite source into the cockpit with a low-profile, stowing display
- The FD90AID-10 features a “face-out” display, which the pilot would open 90° to be viewed
- The 10″ flip display is available in a top mount configuration (FD90AID-10-T) for mounting to the top of the glare shield, and a bottom mount configuration (FD90AID-10-B) for mounting to the underside of the glare shield
- FD90AID-10 is also available with a DVI input and/or a swivel base which allows the unit to turn left and right. More detail on the options is below in the “Additional Options” section
- The FD90AID-10 is a 10″ Flip Up Display, which creates panel space where none previously existed, providing an excellent opportunity to bring EVS video, map information, satellite weather, or any other VGA or Composite source into the cockpit with a low-profile, stowing display
- The FD90AID-10 uses a torsion spring, which deploys the unit up from the mounting plate when opened. It also has a switch mechanism which enables the unit to automatically power off upon closing and power on upon opening
- This display is also available in a bottom mount version (FD90AID-10-B) for mounting under the glare shield, As well as an HD-SDI version of each
- FD90AID-10-T VER HDSDI
- FD90AID-10-B VER HDSDI
| Weight: | 2 Ibs. 12oz | OVERALL dimension: | Open: 10.5”(W) x 6.36”(H) x 6.6”(D) Closed: 10.5” (W) x .89” (H) x 6.6” (D) |
| VIDEO input SUPPORTED: | (1) Analog RGB, (2) Composite Video | POWER: | 12VDC @ .3Amps |
| OPERATING TEMPERATURE: | -20°C/60°C | screen resolution: | 1024x600 |
| materials: | Aluminum | supported resolution: | Up to 1600x1200 |
| video type supported: | VGA, NTSC/PAL | brightness: | 300 cd/m² |
| vIDEO INPUTS: | (1) Analog RGB, (2) Composite Video | iNTERFACE POWER: | 12-28V DC @ .6A – .3A |
| Price | Condition | Status |
|---|---|---|
| REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
