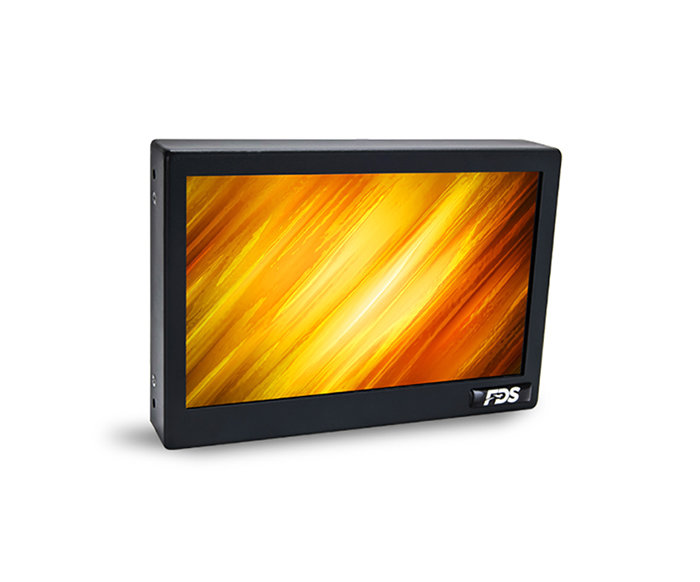

Picture of product FD70CV-M

Part #: FD70CV-M

NSN:

5836-01-648-1969

OEM:

FDS

Desc:

LCD Monitor (7")

Part Number :


FD70CV-M
FEATURES
  • This unit is ideal in situations where bulkhead space forward and aft is limited
  • The compact metal enclosure makes it easy to mount directly to the bulkhead or build into the cabinet wall
  • Unit is a full function 7-inch LCD housed in a metal case that will fit on most aircraft
  • Metal case makes it easy to mount directly to the bulkhead or build the units into the cabinet wall
  • Mounting holes are easily accessible on both sides of the unit.
  • Built for retrofit installation with a compact metal enclosure for increased flexibility
  • No expensive switching required, three inputs included
  • VGA for the Flight Display Moving Map and computer graphics
  • 2 Composite inputs for DVD, Glareshield camera, and more
  • Controls on unit or use the included IR remote to switch video source, adjust preferences, etc.
  • Extremely wide viewing angle allows multiple passengers to watch the same monitor
  • Crystal clear LCD with industry leading brightness
  • 800 x 600 Resolution
  • Widescreen Format
  • VGA input
  • PMA
SPECIFICATIONS
Weight: 1.5 lbs. Dimensions: 6.80”(W) x 4.75”(H) x 1.20”(D)BB
POWER: 12VDC @ .6 Amps 28VDC @ .3 Amps OPERATING TEMPERATURE: 0-50°C (32-122° F)
PC VIDEO INPUT: VGA (Analog RGB 15 pin D-sub) STANDARD VIDEO INPUT: 2 Composite Video
materials: Aluminum supported resolutions: 640x480-1024x768
display brightness: 450 cd/m² viewing angle: 140°/120°
lcd dimension: 140°/120° 6.00"(W)x3.60"(H)





FD70CV-M
- 7" Widescreen LCD Monitor - 12-28 VDC

NSN: 5836-01-648-1969

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
