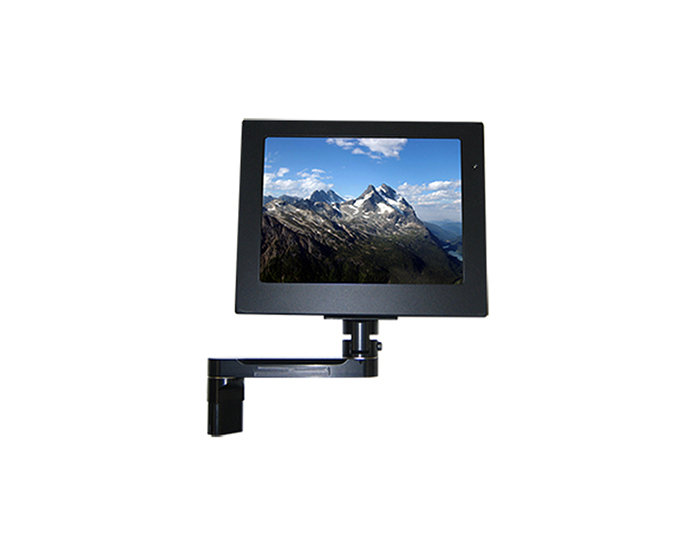

Picture of product FD104ARM

Part #: FD104ARM

OEM:

FDS

Desc:

10.4" LCD & Arm Mount

Part Number :
FD104RM
FEATURES
  • The FD104ARM is a 10.4″ LCD on Arm. It is made of two separate parts, the LCD screen (FD104CV) and the articulating arm (FD104DMT)
  • The FD104ARM 10.4″ Aircraft LCD ideal for any drink rail or side wall, this monitor can be mounted virtually anywhere and stowed out of sight
  • Built with retrofit aircraft integration in mind, this display can switch between three video input sources using the buttons on the bezel or the Infrared Remote
  • The arm has both a hinge and a pivot point, and it can rotate 180° around the attach point at the base and 180° at the bottom of the center of the LCD
  • This mount will allow the monitor to tilt back away from the passenger up to 20°
  • The FD104ARM is made of all metal components. The milled aluminium arm represents the evolution of several design enhancements for an optimum removable mounting solution
  • The 10.4″ LCD utilizes a state of the art digital video decoding chipset for the analog video input.
  • The three video sources in order of picture quality are VGA (Computer Video, such as a Moving Map), S-Video (High-quality DVD), and Composite Video (DVD, Camera, or VCR). Both NTSC and PAL formats are auto-detected
  • The FD104ARM can also be connected to existing video switchers and can take a composite video input from a selector interface box. In this case, multiple input sources can be selected and displayed on the monitor
  • Options available for any combination of standard, long, or tall extensions which add 3″ to the arm in either direction (long and tall versions do not have FAA/PMA)
  • Arm attachment to the monitor is offset for increased flexibility
  • Rotates full 180° left and right, also adjustable tilt forward and aft
  • Monitors can be removed when not in use and for taxi, takeoff, and landing
  • LCD and arm mount included
  • Base receptacles sold separately
SPECIFICATIONS
Weight:  4lbs 9.7oz diSPLAY DIMENSION: 10.22” (W) x 8.23” (H) x 1.48” (D)
MOUNT DIMENSIONS: 7” (W) x 4.7” (H) x 1.5” (D) POWER: 28VDC @ 1.0 Amp
display size: 8.7” (W) x 5.2” (H) sCREEN resolutions: 1024×768 (1280×768 supported)
video INPUT:  Composite Video, S-Video brightness: 700cd/m²
material: Aluminum SCREEN CONTROL: On-screen Display Menu
PC INPUT: VGA (analog RGB) VIDEO TYPE: NTSC/PAL
remote control: IR, Included video inputs supported Composite Video, S-Video



FD104ARM
- 10.4" LCD & Arm Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
