Picture of product FD102ARM-R

Part #: FD102ARM-R

OEM:

FDS

Desc:

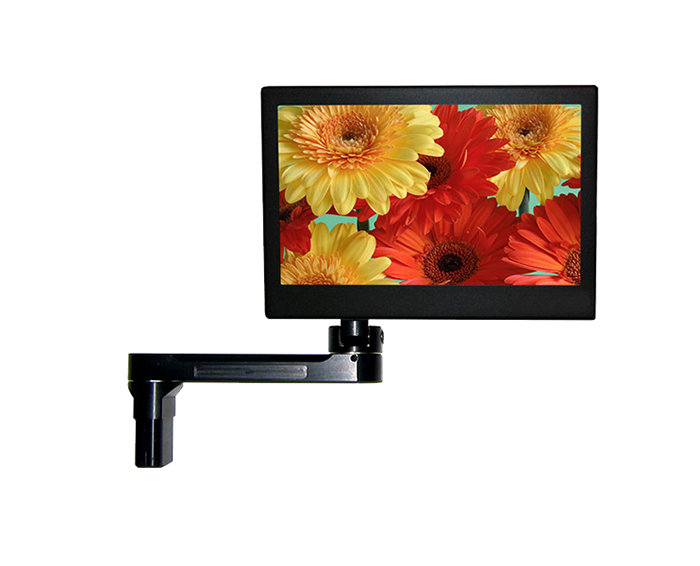

10.2" Widescreen LCD & Right Arm Mount

Part Number :
FD102ARM-R
FEATURES
  • This high resolution 10.2” Widescreen Aircraft LCD is perfect for cabin video and graphical entertainment
  • The FD102ARM 10.2-inch Aircraft LCD ideal for any drink rail or side wall, this monitor can be mounted virtually anywhere and stowed out of sight
  • Built with retrofit aircraft integration in mind, this display can switch between three video input sources using an infrared remote or the control buttons on the top of the monitor
  • The articulating arm rotates 180 degrees, tilts forward and aft, and the monitor can turn 180 degrees on the end of the mount
  • The FD102ARM can also be connected to existing video switchers and can take a composite video input from a selector interface box
  • Multiple input sources can be selected and displayed on the monitor
  • The FD102ARM cabinet is made of all metal components.
  • The LCD is protected with a .060” Lexan lens.
  • The purpose of this lens is to prevent scratching of the LCD
  • Options available for any combination of standard, long, or tall extensions which add 3” to the arm in either direction (long and tall versions do not have FAA/PMA)
  • 7″ and 10.2″ monitors on arm mounts are interchangeable
  • Arm attachment to the monitor is offset for increased flexibility
  • Rotates full 180° left and right, also adjustable tilt forward and aft
  • Monitors can be removed when not in use and for taxi, takeoff, and landing
  • LCD and arm mount included
  • Base receptacles sold separately
SPECIFICATIONS
Weight:  2 Ibs. 15oz diSPLAY DIMENSION: 9.80”(W) x 6.3”(H) x 1.1”(D)
MOUNT DIMENSIONS: 7”(W) x 1.8”(H) x 1.5”(D) POWER: 12VDC @ 2 Amps 28VDC @ .5 Amps
display size: 8.7” (W) x 5.2” (H) sCREEN resolutions: 800×480/640×480~1024×768
video INPUT:  S-Video, Composite brightness: 500 cd/m²
material: Aluminum operating temperature (includes fd102arm vER VC5): 0-50° C (32-122° F)
PC & VIDEO INPUT: SVGA (Analog RGB 15 pin D-sub) 2 Composite INTERFACE POWER: 28V@0.3A
PC INPUT: VGA (analog RGB) INTERFACE VIDEO INPUT: 2 Composite Video
SCREEN CONTROL: On-screen Display Menu REMOTE CONTROL: IR, Included
VIDEO TYPE: NTSC/PAL









FD102ARM-R
- 10.2" Widescreen LCD & Right Arm Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
