Picture of product FD102ARM-L-T

Part #: FD102ARM-L-T

OEM:

FDS

Desc:

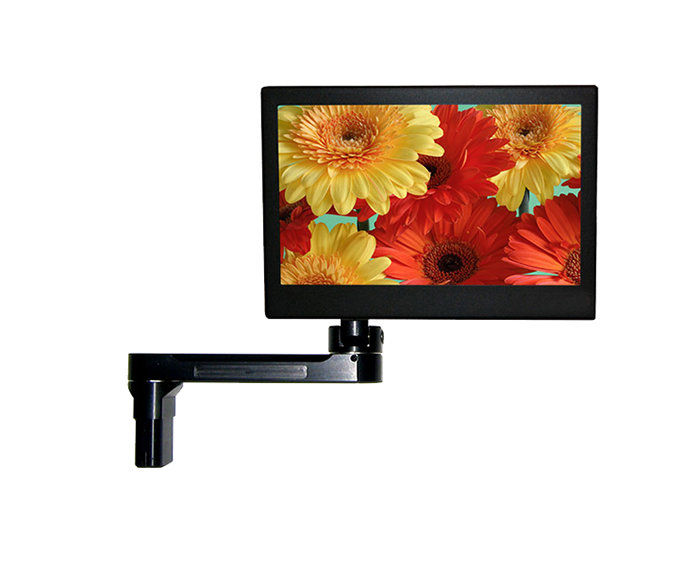

10.2" Widescreen LCD & Left Tall Arm Mount

Part Number :
FD102ARM-L-T
FEATURES
  • This high resolution 10.2” Widescreen Aircraft LCD is perfect for cabin video and graphical entertainment
  • The FD102ARM 10.2-inch Aircraft LCD ideal for any drink rail or side wall, this monitor can be mounted virtually anywhere and stowed out of sight
  • Built with retrofit aircraft integration in mind, this display can switch between three video input sources using an infrared remote or the control buttons on the top of the monitor
  • The articulating arm rotates 180 degrees, tilts forward and aft, and the monitor can turn 180 degrees on the end of the mount
  • The FD102ARM can also be connected to existing video switchers and can take a composite video input from a selector interface box
  • Multiple input sources can be selected and displayed on the monitor
  • The FD102ARM cabinet is made of all metal components.
  • The LCD is protected with a .060” Lexan lens.
  • The purpose of this lens is to prevent scratching of the LCD
  • Options available for any combination of standard, long, or tall extensions which add 3” to the arm in either direction (long and tall versions do not have FAA/PMA)
  • 7″ and 10.2″ monitors on arm mounts are interchangeable
  • Arm attachment to the monitor is offset for increased flexibility
  • Rotates full 180° left and right, also adjustable tilt forward and aft
  • Monitors can be removed when not in use and for taxi, takeoff, and landing
  • LCD and arm mount included
  • Base receptacles sold separately
SPECIFICATIONS
Weight:  2 Ibs. 15oz diSPLAY DIMENSION: 9.80”(W) x 6.3”(H) x 1.1”(D)
MOUNT DIMENSIONS: 7”(W) x 1.8”(H) x 1.5”(D) POWER: 12VDC @ 2 Amps 28VDC @ .5 Amps
display size: 8.7” (W) x 5.2” (H) sCREEN resolutions: 800×480/640×480~1024×768
video INPUT:  S-Video, Composite brightness: 500 cd/m²
material: Aluminum operating temperature (includes fd102arm vER VC5): 0-50° C (32-122° F)
PC & VIDEO INPUT: SVGA (Analog RGB 15 pin D-sub) 2 Composite INTERFACE POWER: 28V@0.3A
PC INPUT: VGA (analog RGB) INTERFACE VIDEO INPUT: 2 Composite Video
SCREEN CONTROL: On-screen Display Menu REMOTE CONTROL: IR, Included
VIDEO TYPE: NTSC/PAL



FD102ARM-L-T
- 10.2" Widescreen LCD & Left Tall Arm Mount
