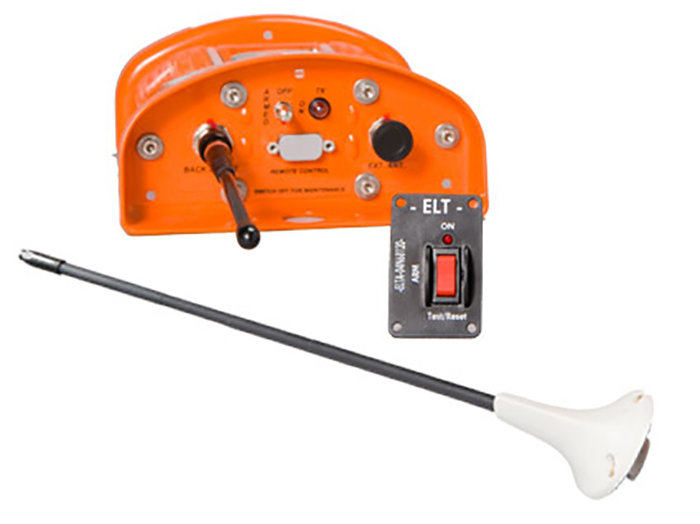

Picture of product ADT 406 AF/AP-H

Part #: 01N65901

Model: ADT 406 AF/AP-H

OEM:

Elta

Part Number :



FEATURES

  • Compact, light weight, stand alone
  • Compatible with all user Protocol and location protocol
  • Automatic/Fixed ELT operating on three frequencies
  • Enhanced safety: 2 antennas (primary & back up)
  • Connection to cockpit Remote Control Panel (see RCP Range)
  • Connection to On board GPS via optional navigation interface
  • Capability to transmit GPS location data
  • 45° «G-switch» for helicopter use to facilitate installation
  • Easy maintenance: An identification module keeps aircraft identification on board. No programming tool needed
  • Easy installation: Same drilling holes as models ELT A06V2/A06
  • Automatic/Fixed type
  • For helicopter application
  • Visual and aural indicator
  • Identification Module
  • Selectable automatic activation direction
  • No false activation induced by EM
  • Dual antenna access



SPECIFICATIONS

height:

73 mm (2,87 in)

width: 160 mm (6,30 in)
WEIGHT with back-up antenna:

1.6 kg (3,53 lb)

Back-up antenna lenght: Max 200 mm (7,87 in)
lenght: 234 mm (9,21 in)
operating temperature: -20°C to +55°C (-4 F to +131°F)
transmission power:

5 W

frequency: 406,028MHz
transmission duration: 440 or 520 ms
transmission recurrence: 50s ± 2.5 s
modulation: “L” two-phase



01N65901
- Emergency Locator (Helicopter)
