Model: DT100

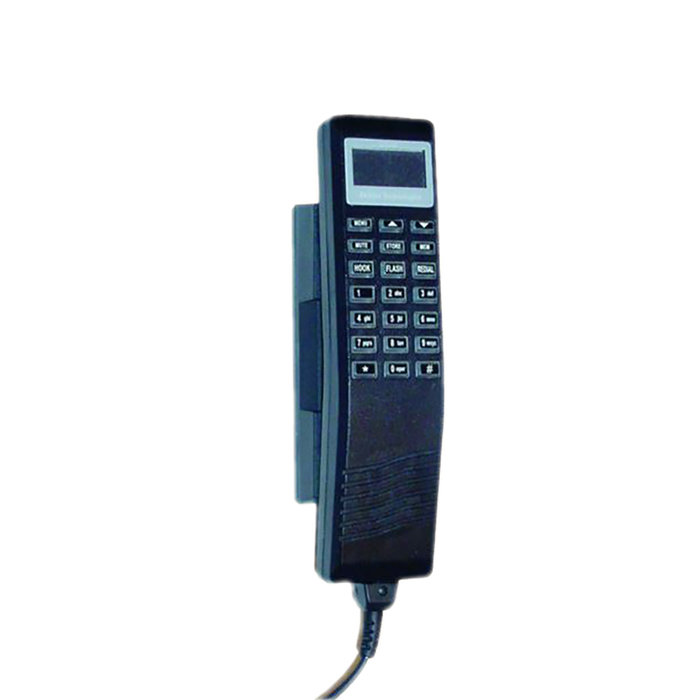

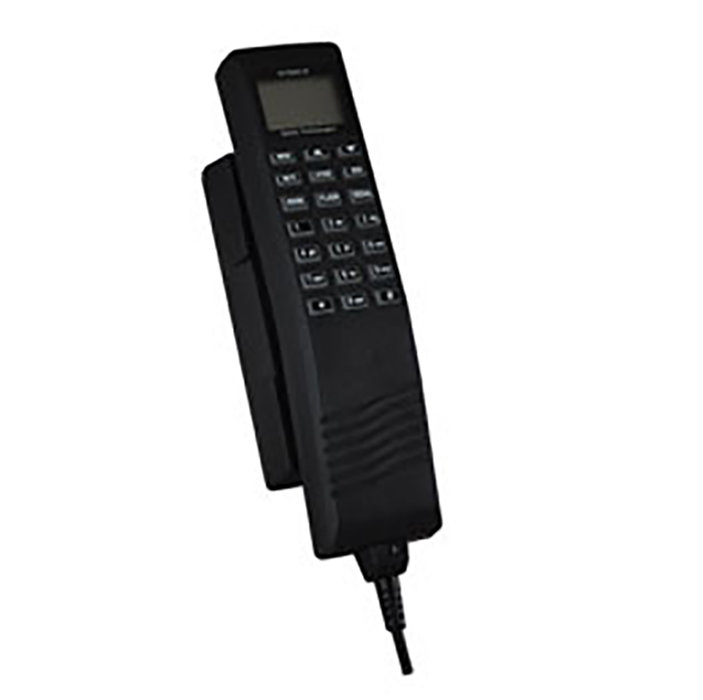

Desc: Telephone Handset w/ locking base
OEM: Deklin
Part Number :





FEATURES

  • 2 wire analog (POTS) interface.
  • 21-33 VDC input (27.5 Nominal)
  • Lighted keypad
  • Flash (600ms)
  • Mute
  • Selectable Ring Tones
  • Volume Level Control
  • Memory Numbers
  • FAR25.853 Conformity



SPECIFICATIONS

Case Material: Flame Retardant ABS, Polyac® PA-766 Flame Retardant Qualification: FAR25.853 Part1, (a),(1),(v)
Dimension: 7.51” x 1.85” x 2.47” (192x47x63 mm) Operating Temperature: -5F to 105F (-20C to +40C)
Survival Temperature: -40F to +158F (-40C to +70C) Humidity: 95%
Altitude: 35,000 ft Max Weight: 0.5 Lbs (0.23 kg)
Connectors: RJ11/6 Jack OR SD9M10JV50 9 D-Sub Input Voltage: 22-33VDC (27VDC Nominal)
Current: 0.5A (Nominal) Fuse Rating: 1A
Flash: 600ms On Hook Voltage: -48VDC (with respect to airframe)
Ringing Voltage: 90VAC±15V (no load) Off Hook Voltage: -5VDC (with respect to airframe)
Distortion: < 5% Telephone I/F: 2 Wire Analog POTS
Telephone Line Inputs: 1



Part Number: Description:
DT100-1XX Handset with locking base, 6’ Coil Cord with RJ11/6 both ends
DT100-2XX Handset with locking base, 6’ Coil Cord with RJ11/6 one end, D-Sub 9 Male one end
DT100-3XX Handset with locking base, 6’ Coil Cord with RJ11/6 one end, D-Sub 9 Male one end (16” pigtail)























DT100-206
- Telephone Handset w/ locking base
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
DT100-302
- Analog Telephone Handet w/ Locking Cradle
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
DT100-303
- Analog Telephone Handset w/ Locking Cradle
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
DT100-306
- Telephone Handset w/ 16" Pigtail & Locking base
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
