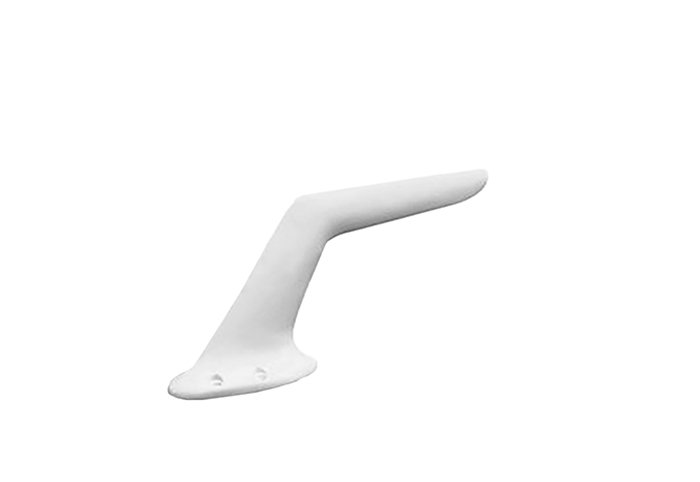

Picture of product VFS10908

Part #: VFS10-90-8

Model: VFS10908

OEM:

Dayton-Granger

Desc:

VHF Comm Antenna

Part Number :



VFS-10-90( )



FEATURES

  • VHF Communications Antenna covering frequency range of 118-136/150/153 Mhz
  • Consists of series of vertically polarized VHF comm antennas
  • Bent blade design offers high performance in a low profile envelope
  • Rated to 600 knots
  • Omnidirectional radiation pattern
  • Fiberglass construction
  • BNC Connector
  • Various options available- see table below



SPECIFICATIONS
Height: 8.2 inches Weight: 2.0 lbs (0.90 kg)
VSWR: 2.5:1 Polarization: Vertical
Frequency: 118-153 Mhz (see versions) Power: 100 Watts
Impedance: 50 ohms Vibration: 5g
Temperature: -62 to +71C TSO: FAA TSO C37b, C38b
Part Number: Descripton:
VFS10-90-2 VHF Comm Ant, 118-150 Freq, VSWR 2.5:1, 1.3 lbs, White color
VFS10-90-5 VHF Comm Ant, 118-136 Freq, VSWR 3.5:1, 1.3 lbs, White color
VFS10-90-6 VHF Comm Ant, 118-150 Freq, VSWR 3.5:1, 1.6 lbs, Black color
VFS10-90-7 VHF Comm Ant, 118-136 Freq, VSWR 3.0:1, 1.3 lbs, White color
VFS10-90-8 VHF Comm Ant, 118-153 Freq, VSWR 2.5:1, 1.3 lbs, White color
VFS10-90-9 VHF Comm Ant, 118-153 Freq, VSWR 2.5:1, 1.3 lbs, Black color



VFS10-90-8
- VHF Comm Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
