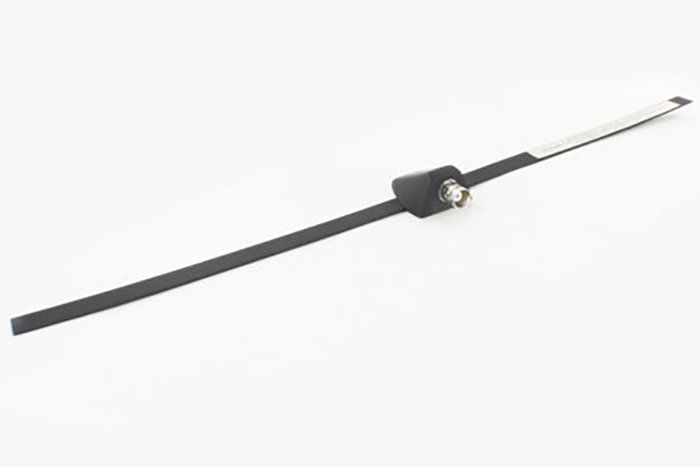

Picture of product RGS10-48

Part #: RGS10-48

NSN:

5985-01-029-7543

OEM:

Dayton-Granger

Desc:

Glideslope Antenna

Part Number :


RGS10-48
FEATURES
  • Glideslope Antenna
  • Designed to operate over the frequency range of 329 to 336 MHz
  • Horizontally polarized
  • Designed to receive the glideslope portion of the ILS system
  • Constructed of epoxy materials and fiberglass
  • Flexible, thus allowing mounting inside a nose radome, on a windshield, vertical structural member, or any flat or concave surface



SPECIFICATIONS
Frequency: 329-336 MHz VSWR: 3.0:1
Impedance: 50 Ohms Polarization: Horizontal
Power: Receive Only Connector: BNC
Weight: 0.2 lbs. (0.09 kg) Finish: Lusterless Black
Length: 15.28 in. (387 mm) Construction: Molded
Vibration: 5G Temperature: -62°C to +71°C
Approvals: FAA TSO C34c AS-3188/ARC

RGS10-48 Diagram

Part Number Glideslope Antenna Description:
RGS10-48 see details above



RGS10-48
- Glideslope Antenna

NSN: 5985-01-029-7543

Price Condition Status
$895.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
