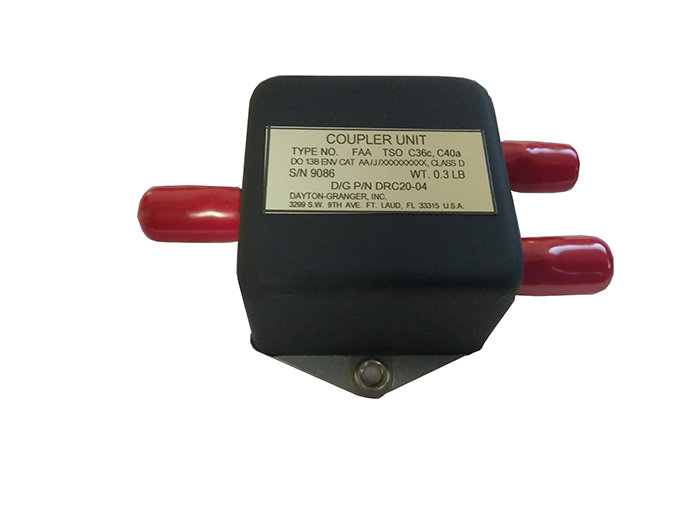

Picture of product DRC20-04

Part #: DRC20-04

NSN:

5985-01-383-1954

OEM:

Dayton-Granger

Desc:

Dual VOR Coupler

Part Number :


DRC20-04
FEATURES
  • Dual VOR coupler
  • Connects one VOR antenna to two VOR receivers
  • Circuit design maintains high isolation and low VSWR
  • Allows the use of any suitable coax cable lengths between the antenna and the coupler and between the coupler and the receiver
SPECIFICATIONS
Height: 1.25 In Weight: 0.3 lbs
Frequency: 108-118 MHz VSWR: 2.0:1
Impedance: 50 Ohms Insertion Loss: 0.5dB
Isolation: 24dB TSO: C36c, C40a
Finish: Lusterless Black Construction: Steel
Connector: BNC
Part Number coupler Descripton:
DRC20-04 see details above



DRC20-04
- Dual VOR Coupler

NSN: 5985-01-383-1954

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
