NSN: |
|
OEM: |
David Clark |
Desc: |

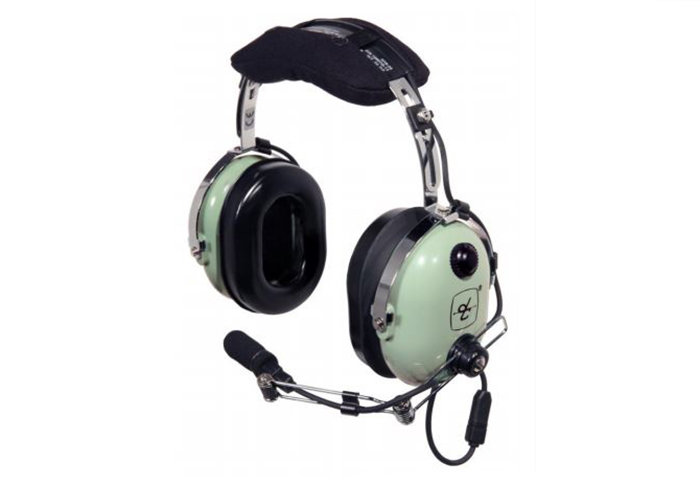

Headset-Mic, Over-The-Head, Helicopter |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
SPECIFICATIONS
Ear coupling: | Around-the-ear | Hardware: | Steel |
Connector Type: | U-174/U | Connection Cable: | ~ 5 ft. (1.5 m) coil cord |
Weight w/o cable: | ~ 20 oz. (567 g) |
Dome type: |
ABS |
Characteristic SPL: | ~95 dB SPL (1 kHz, 1 mW) @ maximum volume nomina |
Total harmonic distortion (THD): |
< 1% - 110 dB SPL (300 - 3,000 Hz) |
Earphone Type: | Dynamic | Ear Impedance: | 150Ω (300 each; wired in parallel) |
Ear Freq Response: | 200 - 5,500 Hz | Microphone principle: | M-7/DC Amplified Electret |
Mic Sensitivity: | 400mV+/-6dB into 150Ω load @ 1kHz for 114dB SPL input | Mic Freq Response: | 300Hz – 3.5KHz per RTCA DO 214 |
Mic DC Supply V: | 8-16V, not polarity sensitive | Source Resistance: | 470Ω |
Part Number: | Description: |
---|---|
12508G-20 | Headset-Mic, Over-The-Head, Helicopter |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
