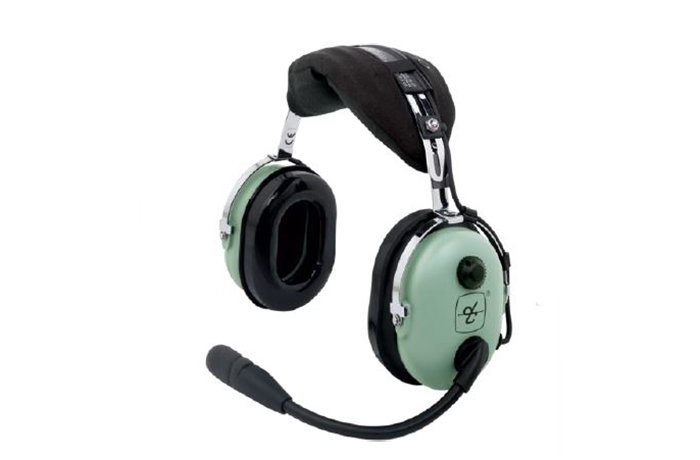

Picture of product H10-13N

Part #: 40411G-12

Model: H10-13N

OEM:

David Clark

Desc:

H10 13 N Headset, Aviation

Part Number :



H10-13 N

FEATURES

  • Expanded, super-soft, double foam head pad
  • Larger, yet lighter, undercut Comfort Gel ear seals
  • Universal flex boom for perfect microphone placement
  • Exclusive M-7A, the most advanced noisecancelling microphone available
  • Low-profile volume control knob with detent settings
  • Molded cord assembly made to exceptional pull and flex standards
  • Certified Noise Reduction Rating – 23 dB
  • Terminated with NATO-Type Plug
  • Exceeds RTCA/DO-214 Standards
  • Five-year warranty
  • Made in USA
  • FAA TSO Approved C-57b, C58a



SPECIFICATIONS

Ear coupling: Around-the-ear rotating boom mic: Allows for easy placement in left or right side positions
Hardware: Steel Contact pressure: ~0.6 lb. (2.7 N)
Connector Type: PJ-055 (.25” phone plug)

faa tso c-139:

Meets or exceeds all TSO requirements
Connection Cable: ~ 5 ft. (1.5 m) straight cord Weight w/o cable: ~ 16 oz. (473 g)
Dome type: ABS Characteristic SPL: ~95 dB SPL (1 kHz, 1 mW) @ maximum volume nominal
Total harmonic distortion (THD): < 1% - 110 dB SPL (300 - 3,000 Hz) Transducer principle: Dynamic
Ear Impedance: 150Ω (300 each; wired in parallel) Ear Freq Response: 200 – 5,500 Hz
Microphone principle: M-7A Amplified Electret Mic Impedance: 50Ω +/- 20%
Mic Sensitivity: 400mV+/-6dB into 150Ω load @ 1kHz for 114dB SPL input Mic Freq Response: 300Hz – 3.5KHz per RTCA DO 214
Mic DC Supply V: 8-16V, not polarity sensitive Source Resistance: 470Ω
Part Number: Description:
40411G-12  Headset-Mic, Over-The-Head, NATO-Type Plug



40411G-12
- Headset
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
