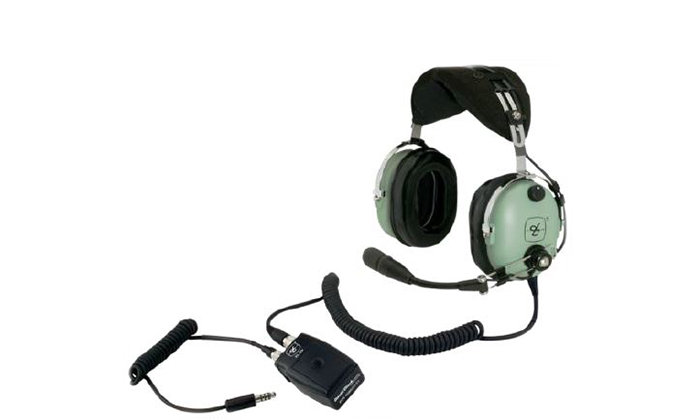

Picture of product H10-13HXL

Part #: 40600G-03

Model: H10-13HXL

NSN:

5965-01-447-6219

OEM:

David Clark

Desc:

H10-13HXL Aviation Headset

Part Number :



H10-13HXL

FEATURES

  • EBattery Power Module – One 9 volt battery for up to 25 hours of operation
  • Expanded, super-soft, double foam head pad
  • Larger, yet lighter, undercut Comfort Gel ear seals
  • Exclusive patented flex/wire boom for easy, precise microphone placement
  • Pilot selectable automatic Shut-Off feature
  • M-7A noise-cancelling electret microphone provides clear, crisp transmission
  • Stereo compatible for use with stereo intercom and cabin entertainment systems
  • Five-foot (extended) coil cord
  • Coiled cord assembly connects to Battery Pow
  • Module to panel intercom/radio
  • Made in USAFAA TSO Approved C57A, C58a
  • NSN 5965-01-447-6219



SPECIFICATIONS

Ear coupling: Around-the-ear Earphone Plug: U-174/U
Hardware: Steel Mic Plug: U-174/U
Connection Cable: ~ 5 ft. (1.5 m) coil cord Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @1KHz
Weight w/o cable: ~ 18 oz. (532 g) Earphone Type: Dynamic (ENC)
Dome type: ABS Microphone principle: M-7A Amplified Electret
Ear Impedance: 300Ω stereo / 150Ω mono Ear Freq Response: 100 – 5,500 Hz
Source Resistance: 470Ω Mic Impedance: 50Ω +/- 20%
Mic Sensitivity: 400mV+/-6dB into 150Ω load @ 1kHz for 114dB SPL input Mic Freq Response: 300Hz – 3.5KHz per RTCA DO 214
Mic DC Supply V: 8-16V, not polarity sensitive
Part Number: Description:
40600G-03 Headset-Mic, Over-The-Head, ENC, Helicopter



40600G-03
- Headset

NSN: 5965-01-447-6219

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
