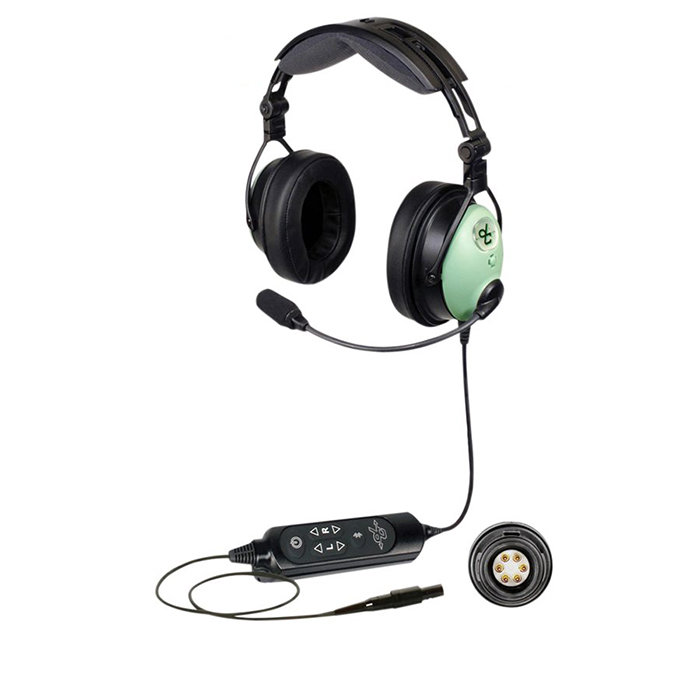

Picture of product DC ONE-XP

Part #: 43102G-02

Model: DC ONE-XP

OEM:

David Clark

Part Number :

Image result for dave clark logo



 DC ONE-XP

FEATURES

  • Panel mount model with 6-pin connector and Hybrid ENC technology with Bluetooth wireless and advanced comfort features
  • Features 6-pin connector for plugging into aircraft panel to power Electronic Noise Cancelling
  • Hybrid Electronic Noise Cancellation with advanced feed-forward and feed-back technology provides best-in-class active noise reduction
  • Digital Signal Processing (DSP) ensures high-fidelity audio for superior communications and music listening
  • Bluetooth® wireless technology provides seamless integration for connecting to cell phones, MP3, tablets or other smart devices
  • Stereo/mono switch ─ compatible with all aircraft audio panel configurations
  • High performance, electret microphone with enhanced noise cancelling
  • Rugged yet lightweight alloy headband and suspension system is adjustable for personalized fit
  • Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool
  • Over-the-ear, leatherette ear seals with slow recovery foam cradle the ears in comfort and provide
  • Compact, in-line control module with backlit, touch-key user interface controls On/Off, Bluetooth® wireless technology and volume control
  • Control module powered by two (2) AA batteries for up to 50 hours of use
  • Collapsible, folding design for compact storage in David Clark headset bag (included)
  • Weight (without cord assembly) 12.3 oz.
  • FAA TSO-C139a Approved

SPECIFICATIONS

Ear coupling : Around-the-ear (Circumaural)
Hardware: Lightweight Alloy
Connector Type:

6-Pin Redel Plug for panel DC Power & intercom connections

Connection Cable 0.155” (4-mm) OD shielded cable, length ~ 6 ft. (1.8 m)
Weight w/o cable ~ 12.3 oz. (349 g)
Battery life Up to 50 hours (2 AA batteries)
Operating temperature -20°C to +70°C
Operating voltage 11 - 30 VDC or 3 VDC (2x AA)
Dome type ABS
Characteristic SPL ~95 dB SPL (1 kHz, 1 mW) @ maximum volume nominal
Contact pressure ~1.4 lb. (6.2 N)
ENC peak attenuation 30dB @ 150Hz
ENC attenuation range 20Hz―1KHz
Total harmonic distortion (THD) < 1% - 110 dB SPL (300 - 3,000 Hz)
Transducer principle Dynamic
Ear Impedance 150 Ω mono / 300 Ω stereo (each ear)
Ear Freq Response 12 - 15,000 Hz
Microphone principle pre-polarized condenser microphone (electret), noise-cancelling
Mic Impedance 150Ω nominal
Mic Freq Response : 150 - 8,000 Hz
Mic DC Supply V : 8-16V, not polarity sensitive
Source Resistance: 470Ω





43102G-02
- Dual Ear, 6-Pin Panel Mount, ENC Headset
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
