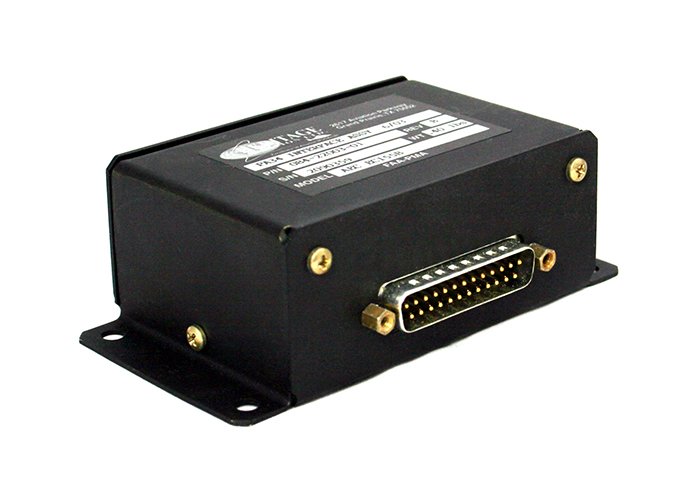

Picture of product PA-34

Part #: PA34

Model: PA-34

NSN:

5920-01-046-4245

OEM:

Dallas Avionics

Desc:

Radio Interface Unit

Part Number :
Dallas Avionics

PA34
FEATURES
  • Radio Interface Unit



SPECIFICATIONS
Temperature Range: -40 to +70 Degrees C (Ambient) Altitude: 15,000 ft. Max
Humidity: 95% Non-Condensing power: +12 to +128VDC at less than 200mA Max (or)
+20 to +33VDC at less than 200mA
Case is isolated to act as a shield
interface logic: Ground seeking input for relay key line.
Outputs 2 sets of uncommitted double throw,
2-Ampere contacts.
interface audio: RX input 2V typical at 8-100 ohms. Outputs on 150/600
ohm line (floating) with at least 200mW. Microphone
interface accepts all types of microphones, with or
without excitation and outputs as either a Hi-level or
Low-level microphone impedance signal.



PA34
- Radio Interface Unit

NSN: 5920-01-046-4245

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
