No image available for CI2480-101

Part #: CI-2480-101

Model: CI2480-101

OEM:

Comant

Desc:

GPS/ORBCOMM Antenna

Part Number :



GPS/Datalink (CI-2480-101)

Frequency · 1575.42 MHz 17dB Gain 118-150 MHz Unique in concept and design, the CI-2480-101 ties the newest avionics systems into a simple, sleek antenna package. Using the CI-248 radome, this antenna provides GPS for Garmin™ receivers and ORBCOMM™ Data Link Capability in a single footprint that matches standard VHF antenna configurations. This means the antenna offers nearly a "drop-in" installation process for your avionics technician. The ORBCOMM™ LEO satellite constellation brings real time weather and email within easy reach of any pilot. Plus, the CI-2480-101 GPS amplifier is specifically built for Garmin™ receivers, providing optimum GPS performance. Built-in high performance notch filter eliminates the need for in-line filters. Installations are not constrained with GPS/VHF spacing considerations.

GPS Electrical

Frequency 1575.42 ±3 MHz
Polarization RHCP
Axial Ratio (Boresight) 3 dB Maximum
Power Handling 1 Watt
Radiation Coverage (Gain) -1.0 dBic < Ø < 75°
  -2.5 dBic < Ø < 80°
  -4.5 dBic < Ø < 85°
  -7.5 dBic < Ø = 90° (Horizon)
  +5.0 dBic nom. at Ø = 0° (Zenith)

Amplifier

Voltage 5vdc
Gain 17dB ±3 dB
Noise Figure 2.0 dB Maximum / 3.8 dB Maximum
Impedance 50 Ohms
VSWR 2.0:1 Maximum Output
Out of Band Rejection 35 dB Minimum @ 1626 MHz
Power Handling 20 mA Maximum
Lightning DC Grounded

Data Link Electrical

Frequency 137 - 150.5 MHz
VSWR 2.5:1 Maximum
Polarization Vertical
Radiation Pattern Omnidirectional
Impedance 50 Ohms
Power Rating 50 Watts
VHF Harmonic Rejection 80 dB Typical

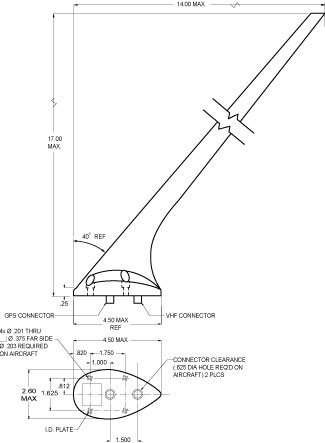

Mechanical

Weight 0.6 lb. Maximum
Height 17.0 in. Maximum
Material Molded Radome
Finish White Polyurethane Enamel (Standard)
Connector Order option of   BNC -- Data Link Port   or   TNC -- GPS Port
Gasket C248006-2 Cork

Environmental

Temperature -55°C to +85°C
Altitude 55,000 ft.
Air Speed 350 Knots TAS

Federal Specifications

RTCA Environmental DO-160D
Environmental Category [F2X]ACB[S(L)U(F,F1)T(C,C1,R)] XRFXXSXXXXXXXX[XX]C
FAA TSO C37d, C38d, C144
RTCA MOPS DO-228



Part NumberDescription:
CI-2480101 GPS and ORBCOMM™ Combination Antenna with 17dB Gain



CI-2480-101
- GPS/ORBCOMM Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
