No image available for CI2480-100

Part #: CI-2480-100

Model: CI2480-100

OEM:

Comant

Desc:

GPS/Orbcomm Antenna

Part Number :

GPS/Datalink (CI-2480-100)

Frequency · 1575.42 MHz 26.5dB Gain 137-150.5 MHz

Unique in concept and design, the CI-2480-100 ties the newest avionics systems into a simple, sleek antenna package. Using the CI-248 radome, this antenna provides GPS for Honeywell Bendix-King™ receivers and ORBCOMM™ Data Link Capability in a single footprint that matches standard VHF antenna configurations. This means the antenna offers nearly a "drop-in" installation process for your avionics technician. The ORBCOMM™ LEO satellite constellation brings real time weather and email within easy reach of any pilot. Plus, the CI-2480-100 GPS amplifier is specifically built for Honeywell Bendix-King™ receivers, providing optimum GPS performance. Built-in high performance notch filter eliminates the need for in-line filters. Installations are not constrained with GPS/VHF spacing considerations.

GPS Electrical :

Frequency 1575.42 ±3 MHz
Polarization RHCP
Axial Ratio (Boresight) 3 dB Maximum
Power Handling 1 Watt
Radiation Coverage (Gain) -1.0 dBic < Ø < 75°
  -2.5 dBic < Ø < 80°
  -4.5 dBic < Ø < 85°
  -7.5 dBic < Ø = 90° (Horizon)
  +5.0 dBic nom. at Ø = 0° (Zenith)

Amplifier :

Voltage 5vdc
Gain 26.5 dB
Noise Figure 3.0 dB Maximum
Impedance 50 Ohms
VSWR 2.0:1 Maximum Output
Out of Band Rejection 35 dB Minimum @ 1626 MHz
Power Handling 50 mA Maximum
Lightning DC Grounded

Data Link Electrical :

Frequency 137 - 150.5 MHz
VSWR 2.5:1 Maximum
Polarization Vertical
Radiation Pattern Omnidirectional
Impedance 50 Ohms
Power Rating 50 Watts
VHF Harmonic Rejection 80 dB Typical

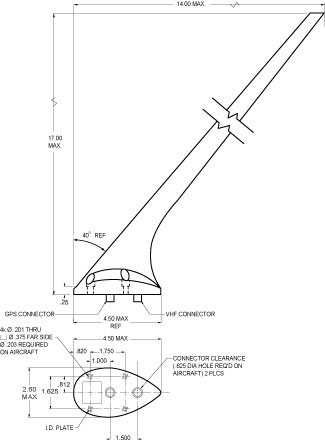

Mechanical :

Weight 0.6 lb. Maximum
Height 17.0 in. Maximum
Material Molded Radome
Finish White Polyurethane Enamel (Standard)
Connector Order option of   BNC -- Data Link Port   or   TNC -- GPS Port
Gasket C248006-2 Cork

Environmental :

Temperature -55°C to +85°C
Altitude 55,000 ft.
Air Speed 350 Knots TAS

Federal Specifications :

RTCA Environmental DO-160D
Environmental Category [F2X]ACB[S(L)U(F,F1)T(C,C1,R)] XRFXXSXXXXXXXX[XX]C
FAA TSO C37d, C38d, C144
RTCA MOPS DO-186A, DO-228



Part NumberDescription:
CI-2480100 GPS and ORBCOMM™ Combination Antenna with 26.5dB Gain



CI-2480-100
- GPS/Orbcomm Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
