NSN: |
|
OEM: |
Comant |
Desc: |
Data Link Antenna |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|

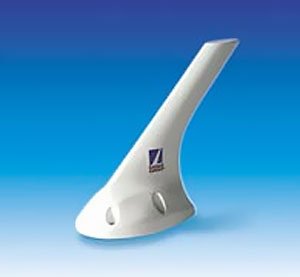

FIS Datalink (CI-248-180)
Frequency · 136.450 - 136.475 MHz
The new Bendix/King KDR 510™ Data Link receiver from Honeywell provides continuously transmitted weather information through high-speed VDL Mode 2. NEXRAD, METARs and TAFs are displayed for any area of the country at any time, providing greater situational awareness for pilots and aircraft equipped with the system. Now Comant assures positive FIS performance with the new CI-248-180 FIS Data Link Antenna. Designed specifically to bring NEXRAD, METARs, and TAFs frequencies to the cockpit, the CI-248-180 offers superior performance in a rugged package. Electrical :
Frequency | 136.450 - 136.475 MHz |
VSWR | 2.0:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power | 25 Watts |

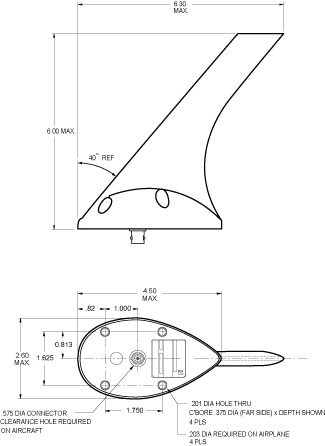

Mechanical :
Weight | 0.32 lb. Maximum |
Height | 6.00 in. Maximum |
Material | Glass Reinforced Nylon |
Finish | White Polyurethane Enamel |
Connector | BNC (female) |
Gasket | B24809 Cork Neoprene |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 650 Knots TAS @ 35,000 ft. |
Federal Specifications:
RTCA Environmental | DO-160D |
Environmental Category | [F2X]ACB[S(L)U(F,F1)T(C,C1,R)] XRFDXSXXXXX[XX]X[XXXX]XAX |
FAA TSO | C37d, C38d |
RTCA MOPS | DO-186A |
Part Number | Description: |
---|---|
CI-248-180 | FIS Bendix/King KDR 510™ Data Link Antenna |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
