NSN: |
|
OEM: |
Comant |
Desc: |
Datalink Antenna |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|

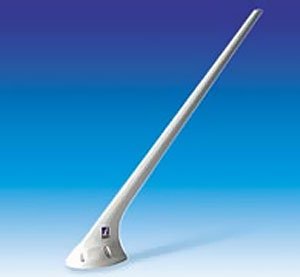

Datalink (CI-248-10)
Frequency · 137-150.5 MHz
The CI-248-10 is specifically designed for use with Weather/Data or WX systems, bringing email and weather data to the cockpit. The CI-248-10 links to the ORBCOMM™ LEO satellite constellation to bring real time weather and email within easy reach of any pilot. This was built for pure electrical performance. Electrical :
Frequency | 137 - 150.5 MHz |
VSWR | 2.5:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power | 25 Watts |

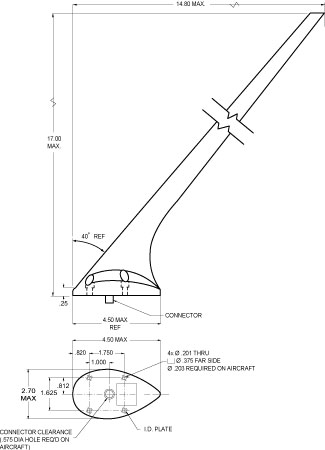

Mechanical :
Weight | 0.52 lb. Maximum |
Height | 17 in. Maximum |
Material | Molded Radome |
Finish | White Polyurethane Enamel |
Connector | BNC |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 350 Knots TAS @ 25,000 ft. |
Federal Specifications:
RTCA Environmental | DO-160D |
Environmental Category | [F2X]ACB[S(L)U(F,F1)T(C,C1,R)] XRFDXSXXXXX[XX]X[XXXX]XAX |
FAA TSO | C37d, C38d |
RTCA MOPS | DO-186A |
Part Number | Description: |
---|---|
CI-248-10 | Data Link to ORBCOMM™ Antenna |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
