NSN: |
|
OEM: |
Comant |
Desc: |
VOR/GS "V" Dipole Antenna |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|

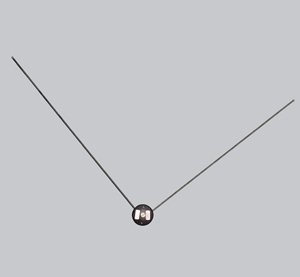

VOR/GS (CI-158C-3)
Frequency · 108-118 MHz (VOR/LOC) · 329-335 MHz (Glide Slope)
"V" Dipole VOR/Glide Slope Antenna with detachable elements was developed specifically for Beech Bonanza aircraft and encompasses reduced static capability with the use of P-Stat paint and bleeder resistors. Integral ferrite balun provides for higher radiation efficiency. Not approved for helicopter installations. Electrical :
Frequency | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
VSWR | 6.0:1 108 - 118 MHz (VOR / LOC) 2.5:1 329 - 335 MHz (Glide Slope) |
Polarization | Horizontal |
Radiation Pattern | Dipole |
Impedance | 50 Ohms Nominal |
Power | Receive Only |
Mechanical :
Weight | 0.35 lb. Maximum |
Height | 16.70 in. Maximum |
Material | Delrin housing / Polyester glass laminate over stainless radiators |
Finish | Black housing / White Polyurethane paint over P-Stat paint |
Connector | BNC |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 250 Knots TAS @ 25,000 ft. |
Federal Specifications :
RTCA Environmental | DO-160 |
Environmental Category | B2ALXXXXXXXXXXX |
FAA TSO | C34c, C38c, C40c |
RTCA MOPS | DO-192, DO-195, DO-196 |
Part Number | Description: |
---|---|
CI-158C-3 | VOR/GS "V" Dipole Antenna with 4-hole mounting and reduced static |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
