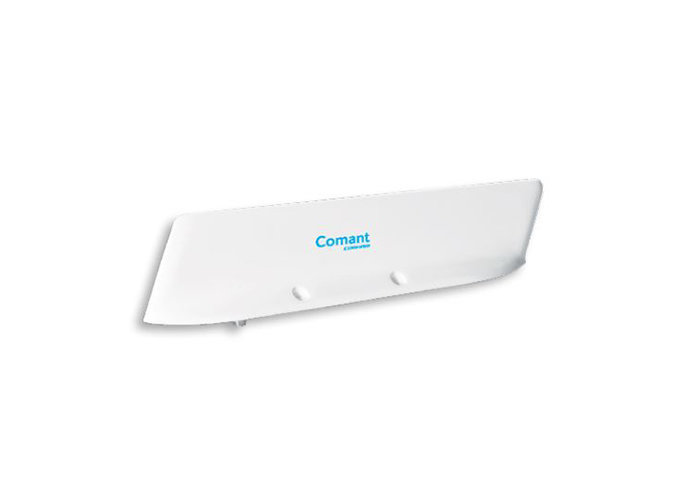

Picture of product CI118-10

Part #: CI-118-10

Model: CI118-10

NSN:

5985-01-570-3569

OEM:

Comant

Desc:

Marker Beacon Antenna (Blade 4 Hole)

Part Number :





CI118-10



  • Identical to the CI 118 except with a 4-hole through mount configuration
  • Tested to the tough DO-160D environmental standards
  • Skydrol and rain erosion resistant
  • DC grounded to minimize accumulation of precipitation static
  •





SPECIFICATIONS

Application: Single and twin engine piston aircraft for applications of this antenna design Frequency: 75 MHz
Impedance rf: 50 ohms nominal VSWR: 1.7:1 Maximum
Polarization: Parallel to the mounting radiation Pattern: Primarily downward
RF Power Capacity: Receive only Resistance DC: DC Grounded
 Weight: 0.8 lbs  Height: 2.90 inches
Construction: Molded Radome Finish: White Polyurethane Paint
Connector: BNC (female) Temperature: -55 to 85 C
Altitude: 45,000 ft FAA TSO: C35d, Class A (RTCA Environmenta- DO-138)
Part Number: Description:
CI-118-10 Marker Beacon Antenna (Blade 4 Hole)



CI-118-10
- Marker Beacon Antenna (Blade 4 Hole)

NSN: 5985-01-570-3569

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
