AM/FM Receive (CI-222)
Frequency · 88-108 MHz 550-1600 KHz

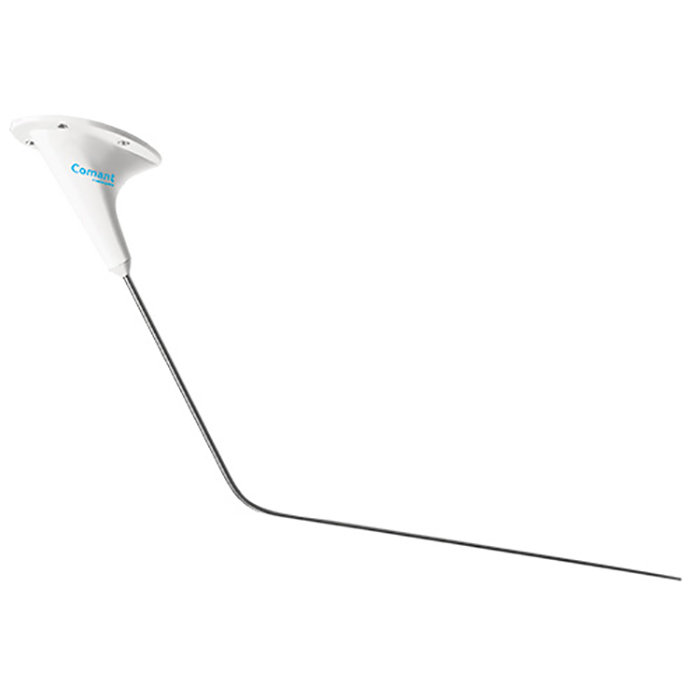

AM/FM receive antenna offers a unique low profile design using standard 4-hole mounting used on many VHF type antennas. Bent whip configuration is ideally suited for underbelly and helicopter installations. Electrical :
Frequency | 88 - 108 MHz & 550 - 1600 KHz |
VSWR | 3.5:1 Maximum @ Mid-Band |
Polarization | Slant / Linear |
Radiation Pattern | Omnidirectional - Receive Only |
Impedance | 50 Ohms |
Power | 50 Watts |

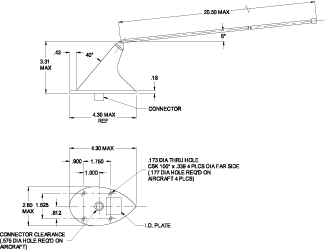

Mechanical :
Weight | 0.5 lb. Maximum |
Height | 5.5 in. Maximum |
Material | Cast zinc housing / Stainless whip |
Finish | White Polyurethane Enamel |
Connector | BNC (female) |
Gasket | B12607-3 |
Environmental :
Air Speed | 450 Knots TAS @ 25,000 ft. |
Part Number | Description: |
---|---|
CI-222 | AM / FM Low Profile Bent Whip Antenna |
Serial # | 687468 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 03/11/22 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
NSN: 5930-00-296-5811
Price | Condition | Status |
---|---|---|
$595.00 | NEW OUTRIGHT | 1 IN STOCK |
