Comant |
Desc: |
DME/Transponder Antenna |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|

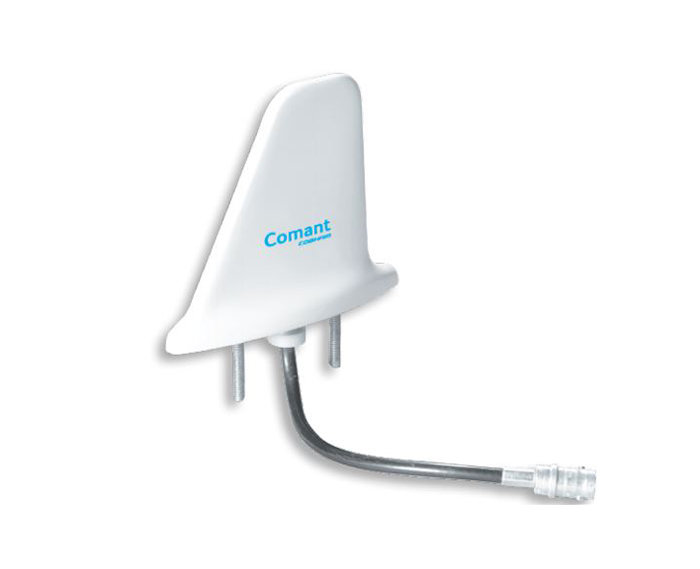

Broadband and rugged antenna designed for DME or transponder use. Antenna assembly encased in a glass reinforced polyester molded shell. CI-105-9 comes standard with a 6" extension coax cable and BNC connector. This model offers standard two stud mounting, where the studs are extended to 1 inch in length.
Electrical: | |
Frequency | 960 to 1220 MHz 1030 to 1090 MHz |
VSWR | 1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz |
Polarization | Vertical |
Radiation Pattern | Equivalent of l / 4 Stub |
Impedance RF | 50 Ohms |
Resistance DC | Open Circuit |
Power RF | 2.5 KW Peak |

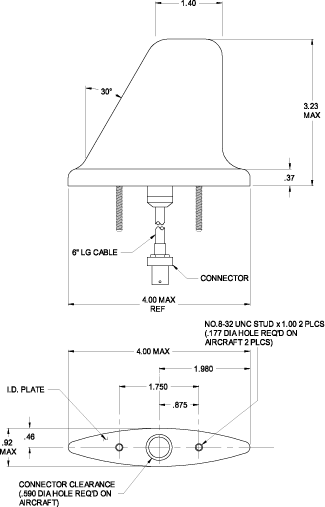

Mechanical: | |
Weight | 0.24 lb. Maximum |
Height | 3.31 in. Maximum |
Material | Molded Radome |
Finish | White Polyurethane Enamel (Standard) |
Connector | BNC (female) on 6 in. coax cable |
Gasket | B10505 |
Environmental: | |
Temperature | -54°C to +55°C |
Altitude | 70,000 ft. |
Air Speed | 400 Knots TAS at 25,000 ft. |
Federal Specifications: | |
RTCA Environmental | DO-160C |
Environmental Category | [E1]-B[CLY]XRHXXXXXXXXXXXXXX |
FAA TSO | C66b, C74c |
RTCA MOPS | DO-144, DO-189 |
Part Number | Description: |
---|---|
CI-105-9 | DME Transponder Antenna with Extension Cable & BNC connector |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
