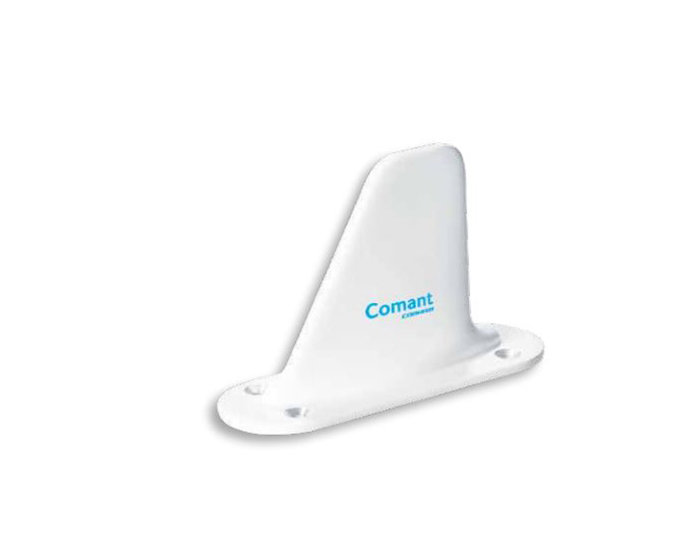

Picture of product CI-105-6

Part #: CI-105-6

OEM:

Comant

Desc:

DME/Transponder Antenna

Part Number :


DME Transponder (CI-105-6 & CI-105-7)



Frequency · 960-1220 MHz & 1030-1090 MHz

Both are similar in electrical performance to Comant's CI-105, except they provide the popular 4-hole external mounting typical on some turbo-prop and jet aircraft.



Electrical:

Frequency 960 to 1220 MHz 1030 to 1090 MHz
VSWR 1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz
Polarization Vertical
Radiation Pattern Equivalent of l / 4 Stub
Impedance RF 50 Ohms
Resistance DC Open Circuit
Power RF 2.5 KW Peak

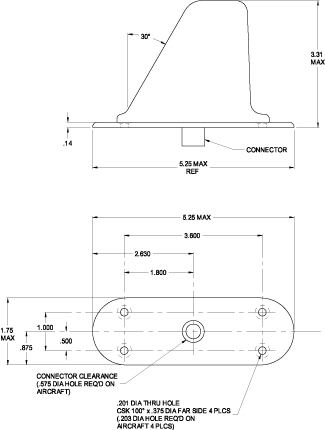

Mechanical:

Weight 0.24 lb. Maximum
Height 3.31 in. Maximum
Material Molded Radome
Finish White Polyurethane Enamel (Standard)
Connector (see above P/N's to order the choice of connector)
Gasket B10006-1



Environmental:

Temperature -54°C to +55°C
Altitude 70,000 ft.
Air Speed 400 Knots TAS at 25,000 ft.



Federal Specifications:

RTCA Environmental DO-160C
Environmental Category [E1]-B[CLY]XRHXXXXXXXXXXXXXX
FAA TSO C66b, C74c
RTCA MOPS DO-144, DO-189



Part Number Description:
CI-105-6 DME Transponder External Mount Antenna with a BNC Connector
CI-105-7 DME Transponder External Mount Antenna with a C Connector



CI-105-6
- DME/Transponder Antenna
Price Condition Status
$505.00 NEW OUTRIGHT REQUEST LEAD TIME
