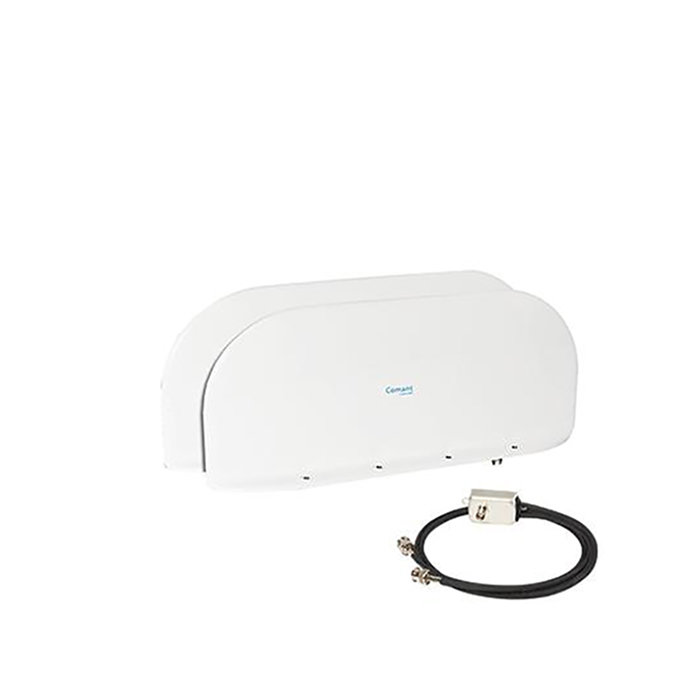

Picture of product 24-37-01

Part #: CI-2437-01

Model: 24-37-01

OEM:

Comant

Desc:

VOR/GS Antenna System

Part Number :





FEATURES

  • CI 24-37-01 is designed to provide optimum VOR/LOC/GS performance
  • Qualified for use on larger twin engine, jet, and helicopter aircraft
  • Complete set includes a pair of two blade antennas
  • BNC connector outputs,
  • Two coax interchange cables
  • A single output signal combiner providing for a single RF cable run to the avionics installation to the NAV receivers
  • FAA TSO C34e, C36e, C40c
  • RTCA MOPS DO-192, DO-195, DO-196
  • RTCA Environmental DO-160D



SPECIFICATIONS

Frequency: 108-118 MHz (VOR/LOC)  329-335 MHz (GS) VSWR: 6.0:1 108-118 MHz  3.5:1 329-335 MHz
Polarization: Horizontal Radiation Pattern: Omni Directional
Impedance RF: 50 Ohms Nominal Power RF: Receive Only
Weight: 2.8 lb Height: 6.5 in
Finish: Polyurethane Enamel Connector: BNC / Single Output Combiner
Temperature: -55°C to 85°C Altitude: 50,000 ft





Part Number: Description:
CI-2437-01 VOR/GS Antenna System







CI-2437-01
- VOR/GS Antenna System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
