Part #:

Model: VIR-432

OEM:

Collins Aerospace

Desc:

Navigation Receiver

Part Number :


VIR-432

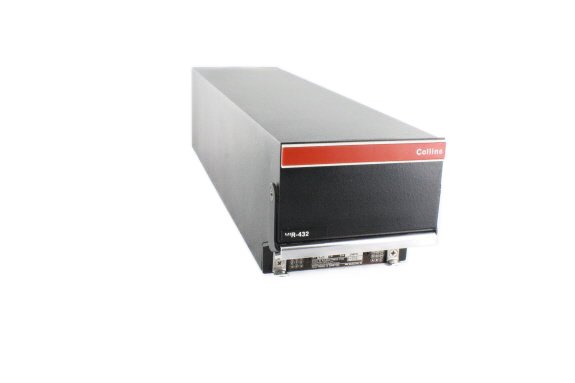

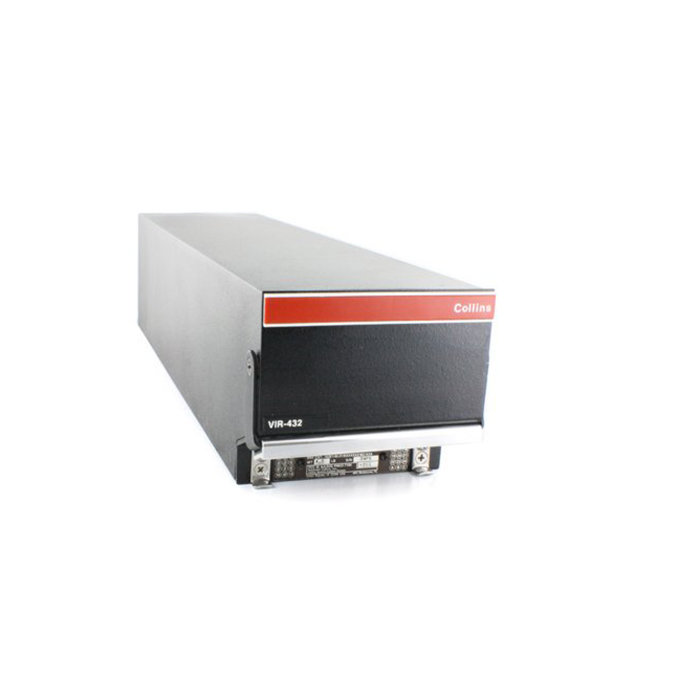

(Note: VIR-32 image shown due to similarities in appearance)

FEATURES
  • Proline IV Navigation Receiver including fully digital VOR/LOC, glideslope, and marker beacon receivers
  • Provides serial-digital I/O interface and features digital signal processing for improved performance
  • Accepts conventional 2-out-of-5 tuning and provides conventional sine/cosine outputs
  • Controlled by either an ARINC 429 signal from a controller or by CTL-32
  • May be installed as a direct replacement for Proline I VIR-30A
  • Models and modification available for units to meet ICAO Annex 10 which reduces interference by high-power FM broadcast radio stations (see table below)



SPECIFICATIONS
TSO: (VOR) C40b; (LOC) C36d; (GS) C34d; (MB) C35d EUROCAE: (VOR) ED-22A; (LOC) ED-46; (GS) ED-47; (MB) 1/WG7/70
RTCA: (VOR) DO-153A; (LOC) DO-131A; (GS) DO-132A; (MB) DO-143 Environmental: DO-160A, categories /A2E1/B/JY/ EXXXXXZ/BZ/AZA; EUROCAE ED-14A
Temperature: -55 to 70C (operation) Dimensions: 3.80"W x 3.360"H x 13.969"L
Weight: 4.5 lb. Altitude: 70000 ft.
Channels: 160 VOR, 40 LOC, and 40 GS Frequency control: CSDB or ARINC 429
VOR/LOC Frequency Range: VOR- 108.00 to 117.95 MHz. LOC- 108.10 to 111.95 MHz VOR/LOC Channel Spacing: 50 kHz
VOR/LOC Sensitivity: (aural) 3uV for 10dB; (flag) 2.8uV for flag out-of-view VOR/LOC Selectivity: 6dB +-15 kHz min; 60dB +-41 kHz max
VOR/LOC Spurious Responses: At least 70dB below desired response VOR/LOC Audio Output: 100mW nom into 600 ohm load with 30% modulation, at least 1000Hz
VOR/LOC Analog Output: OBI sine/cosine; capable of driving three RMI pointers VOR/LOC OBS Resolver: Provides HSI course resolver signals. Outputs ac signals on OBS E and F. HSI return ac signals on OBS A and B. OBS G,C, and D connected to internal common
VOR/LOC Deviation: Output capable of driving one to five loads, 1000 ohm each, without external strapping. Deviation sensitivity in VOR, 150 mV for 10 deg; in LOC, 90 mV for 0.093 DDM. VOR deviation accuracy +-0.75 deg; LOC deviation centering accuracy +-4.0 mV dc. Polarity: VOR, positive deviation for airplane left of course; LOC, positive deviation for 90 Hz > 150 Hz VOR TO/FROM: Output capable of driving one to three loads, 200 ohm each. Drive level TO: +80 to +165 mV. Drive level FROM: -80 to -165 mV
VOR/LOC Flag: (low level) output capable of driving one to five loads, 1000 ohm each. Output 1.0 to 1.9 V dc, current limit 10 mA VOR/LOC Superflag: Nominal output +26Vdc, min output 12.0 Vdc at 250 mA with input power at +16 Vdc
VOR/LOC RNAV: Output is a buffered VOR/LOC detector output adjusted nominally for 0.5 Vrms with standard VOR signal input GS Frequency Range: 329.15 to 335.00 MHz
GS Channel Spacing: 150 kHz GS Sensitivity: 7 microvolts for flag out of view
GS Selectivity: 6 dB at +-25.5 kHz min; 60 dB at +-160 kHz max GS Spurious Response: -60 dB
GS Deviation Output: Capable of driving one to five 100ohm loads. 78 mV for 0.091 DDM, max output is +-0.35Vdc. Polarity: positive down for 90 Hz > 150 Hz GS Flag: (low level) +1.0 to +1.9 Vdc for flag out-of-view, current limited to 10mA; capable of driving one to five 1000 ohm loads
GS Superflag: (high level) Nominal output is +26 Vdc, current limited to 250 mA for a valid input signal MB Frequency: 75.00 MHz
MB Sensitivity: High sens: 200 uV +-6dB; Low sens: 1500 uV +-6dB MB Selectivity: 6dB at +-16 kHz min; 60dB at +-170 kHz max
MB Lamp Output: Capable of driving dual 3-lamp load, 6.3V lamps at 200 mA or less per blub on each bulb MB Hi/Lo Strap: Used when parallel control is selected
Part NumberNavigation Receiver Description:
622-7194-101 Standard version, see features above
622-7194-201 Meets ICAO Annex 10


PLEASE NOTE:
THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



622-7194-201
- Navigation Receiver

NSN: 5826-01-432-2044

Price Condition Status
$2,450.00 OH OUTRIGHT 1 IN STOCK
$1,350.00 OH EXCHANGE 1 IN STOCK
622-7194-101
- Navigation Receiver
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
