Part #: 622-6137-001
Model: VIR-32
NSN: |
5826-01-300-2715 |
OEM: |
Collins Aerospace |
Desc: |
Navigation Receiver |
Select part number above to view pricing and availability.
| Price | Condition | Status | More Info | |
|---|---|---|---|---|
| $1,150.00 | OH OUTRIGHT | 4 IN STOCK | VIEW |

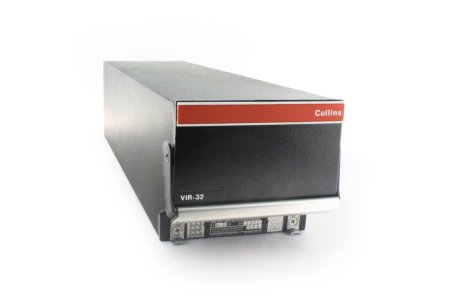

VIR-32
- Proline II Navigation Receiver including fully digital VOR/LOC, glideslope, and marker beacon receivers
- Provides serial-digital I/O interface and features digital signal processing for improved performance
- Accepts conventional 2-out-of-5 tuning and provides conventional sine/cosine outputs
- The VIR-32 can be installed as a direct replacement for the VIR-30A (rack & connector remain the same), however you must also install a CTL-32 Control and CAD-31 Adapter.
- Models and modification available for units to meet ICAO Annex 10 which reduces interference by high-power FM broadcast radio stations (see table below)
| TSO: | (VOR) C40b; (LOC) C36d; (GS) C34d; (MB) C35d | EUROCAE: | (VOR) ED-22A; (LOC) ED-46; (GS) ED-47; (MB) 1/WG7/70 |
| RTCA: | (VOR) DO-153A; (LOC) DO-131A; (GS) DO-132A; (MB) DO-143 | Environmental: | DO-160A, categories /A2E1/B/JY/ EXXXXXZ/BZ/AZA; EUROCAE ED-14A |
| Temperature: | -55 to 70C (operation) | Dimensions: | 3.762"W x 3.360"H x 13.969"L |
| Weight: | 4.5 lb. | Altitude: | 70000 ft. |
| Channels: | 160 VOR, 40 LOC, and 40 GS | Frequency control: | CSDB serial data or ARINC 2-out-of-5 |
| VOR/LOC Frequency Range: | VOR- 108.00 to 117.95 MHz. LOC- 108.10 to 111.95 MHz | VOR/LOC Channel Spacing: | 50 kHz |
| VOR/LOC Sensitivity: | (aural) 3uV for 10dB; (flag) 2.8uV for flag out-of-view | VOR/LOC Selectivity: | 6dB +-15 kHz min; 60dB +-41 kHz max |
| VOR/LOC Spurious Responses: | At least 70dB below desired response | VOR/LOC Audio Output: | 100mW nom into 600 ohm load with 30% modulation, at least 1000Hz |
| VOR/LOC Analog Output: | OBI sine/cosine; capable of driving three RMI pointers | VOR/LOC OBS Resolver: | Provides HSI course resolver signals. Outputs ac signals on OBS E and F. HSI return ac signals on OBS A and B. OBS G,C, and D connected to internal common |
| VOR/LOC Deviation: | Output capable of driving one to five loads, 1000 ohm each, without external strapping. Deviation sensitivity in VOR, 150 mV for 10 deg; in LOC, 90 mV for 0.093 DDM. VOR deviation accuracy +-0.75 deg; LOC deviation centering accuracy +-4.0 mV dc. Polarity: VOR, positive deviation for airplane left of course; LOC, positive deviation for 90 Hz > 150 Hz | VOR TO/FROM: | Output capable of driving one to three loads, 200 ohm each. Drive level TO: +80 to +165 mV. Drive level FROM: -80 to -165 mV |
| VOR/LOC Flag: | (low level) output capable of driving one to five loads, 1000 ohm each. Output 1.0 to 1.9 V dc, current limit 10 mA | VOR/LOC Superflag: | Nominal output +26Vdc, min output 12.0 Vdc at 250 mA with input power at +16 Vdc |
| VOR/LOC RNAV: | Output is a buffered VOR/LOC detector output adjusted nominally for 0.5 Vrms with standard VOR signal input | GS Frequency Range: | 329.15 to 335.00 MHz |
| GS Channel Spacing: | 150 kHz | GS Sensitivity: | 5 uV for flag out-of-view |
| GS Selectivity: | 6 dB at +-25.5 kHz min; 60 dB at +-160 kHz max | GS Spurious Response: | -60 dB |
| GS Deviation Output: | Capable of driving one to five 100ohm loads. 78 mV for 0.091 DDM, max output is +-0.35Vdc. Polarity: positive down for 90 Hz > 150 Hz | GS Flag: | (low level) +1.0 to +1.9 Vdc for flag out-of-view, current limited to 10mA; capable of driving one to five 1000 ohm loads |
| GS Superflag: | (high level) Nominal output is +26 Vdc, current limited to 250 mA for a valid input signal | MB Frequency: | 75.00 MHz |
| MB Sensitivity: | High sens: 200 uV +-6dB; Low sens: 1500 uV +-6dB | MB Selectivity: | 6dB at +-16 kHz min; 60dB at +-170 kHz max |
| MB Lamp Output: | Capable of driving dual 3-lamp load, 6.3V lamps at 200 mA or less per blub on each bulb | MB Hi/Lo Strap: | Used when parallel control is selected |
| Part Number | Navigation Receiver Description: |
|---|---|
| 622-6137-001 | Standard version, see features above |
| 622-6137-201 | Meets ICAO Annex 10 |
