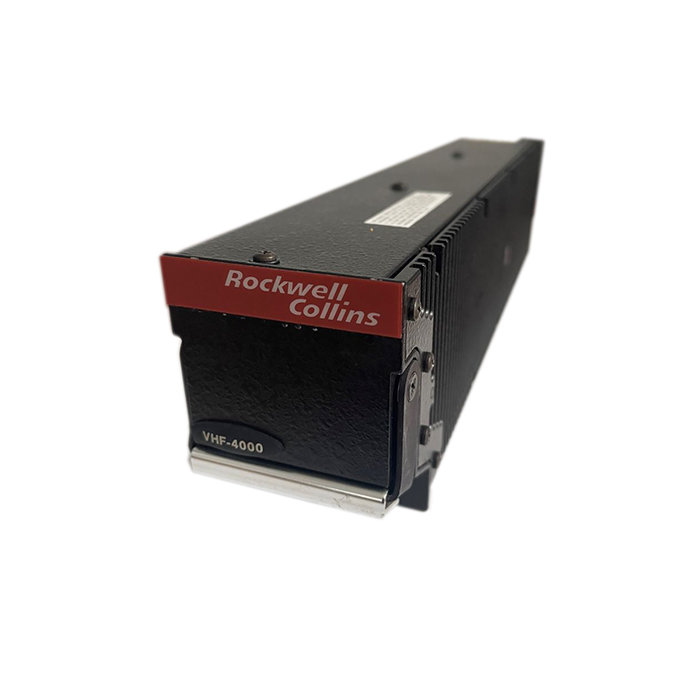

Picture of product VHF-4000

Part #:

Model: VHF-4000

OEM:

Collins Aerospace

Desc:

VHF Comm/25KHZ

Part Number :




VHF-4000
FEATURES
  • VHF Communication Transceiver
  • Digital tuning signal processing
  • Single set of high-speed ARINC 429 I/O buses: offer tuning, digital audio, maintenance data and software data loading capability
  • ARINC 429 and CSDB tuning capabilities
  • Interfaces with the RIU-4000 providing a concentrated radio interface to the rest of the aircraft
  • Reduced size, weight and energy usage
  • Digital audio I/O in addition to analog audio
  • ARINC characteristic 750 data interface: Compatible with CMU-4000 and CMU-900 communication management units
  • Minimum output power of 18 watts: Provides coverage up to 200 nautical miles
  • Internal diagnostic capability: Minimizes time spent on fault diagnosis; fault code readout available on CTL or RTU
  • Comprehensive maintenance software package
  • Digital receiver and transmitter technology: Minimizes component aging and drift associated with analog circuitry; allows upgrade path to new technologies such as VDL Mode 3 and Mode 4
  • For military and non-standard aviation applications, versions with an extended frequency range outside the commercial aviation frequency band are available
  • Typical Systems:
    • VHF-4000 Transceiver/VHF Comm, 25 kHz/8.33 kHz (-102) and CTL-22D Comm Control, 25 kHz/8.33 kHz
    • VHF-4000 Transceiver/VHF Comm, 25 kHz/Data (-202), CTL-22G Comm Control, 25 kHz, CMU-4000 Communications Management Unit and ECU-3000 External Compensation Unit
    • VHF-4000 Transceiver/VHF Comm, 25 kHz/8.33 kHz/Data (-302), CMU-4000 Communications Management Unit and ECU-3000 External Compensation Unit

SPECIFICATIONS
frequency: 118-137 Mhz weight: 3.5 lbs
dimensions: 3.44" H x 2.5" W x 14.12" L temperature: -55°C to 70°C
altitude: 50,000 ft power: 28VDC,
faa tso: C37d, C38d eurocae: ED-23, ED-24
environmental: DO-160D Change 1, [(A2)(F2)Z]BBB[ (SLM)(TCC1R)] EWXXXSZ[BZ] AZC[KA]H{A3E3] XAA fcc: Part 15, Part 87 (Emission designator 5K0A3E, 10K0A3E, 14K0G1D)
Part Number transceiver/vhf comm Description:
822-1468-001 25 kHz channel spacing, Voice Mode
822-1468-002 Same as -002 with hardware/software enhancements
822-1468-101 8.33 kHz/25 kHz channel spacing, Voice Mode
822-1468-102 Same as -101 with hardware/software enhancements
822-1468-201 25 kHz channel spacing, Voice Mode, Mode A/2
822-1468-202 Same as -201 with hardware/software enhancements
822-1468-301 8.33/25 kHz channel spacing, Voice Mode, Mode A/2
822-1468-302 Same as -301 with hardware/software enhancements



822-1468-002
- VHF COMM, 25 KHZ
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
822-1468-310
- VHF Comm Transceiver

NSN: 5895-01-619-0503

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-1468-010
- VHF Comm Transceiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-1468-101
- VHF Comm/8.33 KHZ
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
822-1468-102
- VHF Comm Transceiver

NSN: 5821-01-609-4116

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
$13,500.00 SV OUTRIGHT REQUEST LEAD TIME
822-1468-110
- VHF Comm Transceiver

NSN: 5895-01-619-0673

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-1468-202
- VHF COMM
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-1468-210
- VHF Comm Transceiver
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-1468-302
- VHF Comm

NSN: 5821-01-563-5831

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
