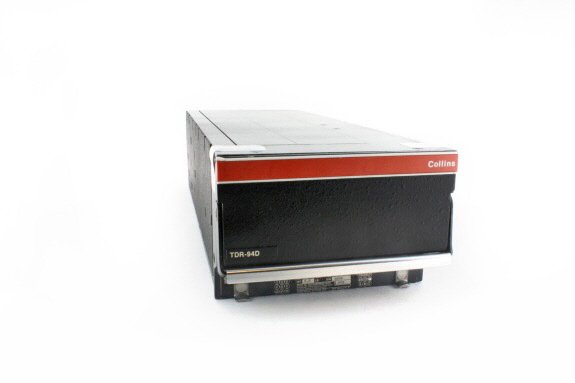

360 degree product image of TDR-94D
360
360 image holder for TDR-94D
360 degree product image thumbnail of TDR-94D
360

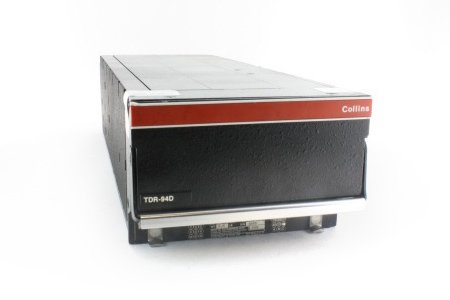

Thumbnail product image of TDR-94D

Part #: 622-9210-501

Model: TDR-94D

NSN:

5895-01-670-0766

OEM:

Collins Aerospace

Desc:

Mode S Transponder
Part Number :
Rockwell Collins logo

TDR-94D
FEATURES
  • Solid-state, airborne, ATC transponder providing Mode A,C, and S operation
  • Can be controlled via CTL-92 control or ARINC 429 as from a compatible ARINC 429 control unit
  • Diversity version capable of transmitting and receiving on either of two antennas mounted on top and bottom of aircraft
  • Fully compatible with TCAS II system installations requiring antenna diversity
  • CTL-92T Transponder/TCAS control can be used in conjunction with CTL-92 control to add TCAS control functions
  • 250-625 watts power output
  • Version available with altitude input via the ARINC control bus (see table below)
  • Version available with expanded installation configuration options and enhancements to diagnostic and maintenance performance (see table below)
  • Version available with Class 3A/ADSB Mode S Transponder status (see table below)
  • Version available with improved altitude resolution status (see table below)
  • Version availabe with improved software to prevent non Collins TCAS Systems displaying a TCAS flag, or intermttent TCAS flag, when TCAS is in standby mode (see table below)
  • Version available that is compliant with European requirements for Elementary and Enhanced Surveillance for SSR Mode S operation; included is the capability for the transponder to process aircraft Flight Identification inputs and to support expanded ground station Surveillance Identifier SI codes)(see table below)
  • Version available with ADS-B (Automatic Dependant Surveillance) capability (see table below)
  • New variant (-502) includes the ability to automatically generate a fixed flight ID from the Mode S code for U.S. registered aircraft
SPECIFICATIONS
FAA TSO: TSO-C112, class 2A RTCA: DO-181, DO-144
Software:  DO-178A, level 2 EUROCAE:   ED-12A
ICAO: Annex 10 Environmental: DO-160B (FAA); ED-12A (EUROCAE)
Size: 3.33"H x 4.90"W x 12.50"L Weight: 8.5 lbs.
Power Requirements: Requirements: 27.5 +-2.5Vdc at 28 watts nominal, 30 watts max Power output: 250 watts min, 625 watts max
Recevier IF: 60 MHz Receiver Sensitivity: -77 dBm +-3dBm
Part Number ATC Mode S Transponder Description:
622-9210-001 original version, see features above
622-9210-002 Auto Altitude Mode; Same as -001 but with upgraded TCAS interface performance, and added altitude input improves the "Burst" control interface necessary for several system configurations
622-9210-003 Auto Altitude Mode; Same as -002 but with updated improvements to Mode S transponder requirements per RTCA and installation configuration options are expanded and enhancements to its diagnostic and maintenance performance is implemented
622-9210-004 Supersedes -003; Auto Altitude Mode; ADS-B Compatible
622-9210-005 Supersedes -004; Auto Altitude Mode; Same as -004 but with improved altitude resolution status for aircraft that have digital source of altitude information
622-9210-006 Auto Altitude Mode; Same as -005 but with improved software for TCAS flag
622-9210-007 Supersedes -004/005/006; Auto Altitude Mode; Enhanced Mode S; Can be installed in aircraft WITHOUT Pro Line 4 or 21
622-9210-008 Supersedes -007; Enhanced Mode S; Can be installed in aircraft WITH Pro Line 4 or 21; Can also be installed in aircraft WITHOUT Pro Line 4 or 21 if STRAP is set properly
622-9210-108 Supersedes -007/008; ADS-B capability; Enhanced Mode S; Can be installed in aircraft WITH Pro Line 4 or 21; Can also be installed in aircraft WITHOUT Pro Line 4 or 21 if STRAP is set properly
622-9210-207 Supersedes -007; Auto Altitude Mode; Enhanced Mode S; Can be installed in aircraft WITHOUT Pro Line 4 or 21
622-9210-308 Supersedes -008; Enhanced Mode S; Can be installed in aircraft WITH Pro Line 4 or 21
622-9210-309 Supersedes -004/005/006/007/008/207/308
622-9210-310 Supersedes -007/008/207/308/309
622-9210-408 Supersedes -108; Enhanced Mode S; Can be installed in aircraft WITH Pro Line 4 or 21
622-9210-409 Supersedes -004/005/006/007/108/207/408; ADS-B capable (DO-260A)
622-9210-410 Supersedes -007/008/108/207/308/309/408/409; ADS-B Capable (DO-260A) - CSDB data source
622-9210-500 ADS-B Capable (DO-260B) - fixed wing application
622-9210-501 ADS-B Capable (DO-260B) - fixed wing application
622-9210-502 Automatically generates flight ID if absent
622-9210-550 ADS-B Capable (DO-260B) - rotorcraft application
622-9210-551 ADS-B Capable (DO-260B) - rotorcraft application



622-9210-501
- ADS-B Transponder

NSN: 5895-01-670-0766

Price Condition Status
$16,500.00 SV OUTRIGHT IN WORK
622-9210-001
- Mode S Transponder
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-9210-002
- Mode S Transponder
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-9210-003
- Mode S Transponder

NSN: 5895-01-424-3785

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-9210-004
- Mode S Transponder

NSN: 5895-01-459-8632

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-9210-005
- Mode S Transponder

NSN: 5895-01-497-7758

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
$250.00 AR OUTRIGHT REQUEST LEAD TIME
622-9210-006
- Mode S Transponder

NSN: 5895-01-588-0997

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
622-9210-007
- Mode S Transponder

NSN: 5895-01-514-7241

Price Condition Status
RFQ RFQ RFQ
622-9210-008
- Mode S Transponder

NSN: 5841-01-543-2160

Price Condition Status
RFQ RFQ RFQ
622-9210-207
- Mode S Transponder
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-9210-409
- Mode S Transponder (w/ Diversity)

NSN: 5841-01-623-5101

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9210-410
- Mode S Transponder
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-9210-502
- Mode S/ADS-B Transponder

NSN: 5895-01-576-8741

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-9210-550
- Mode S Transponder
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

No, it is not economical to upgrade a -006 or lower. -007 and higher units should be pursued instead.

The first revision of the TDR-94/94D manual is dated April 1989

Most Mode S transponders such as the Honeywell MST-67A and Collins TDR-94D include a feature that allows it to automatically determine the aircraft Registration Number (Tail Number) of U.S. registered (N numbered) aircraft. If the aircraft is U.S. registered and operated where the tail number is used as the call sign (Flight ID), then the operator does not have to manually enter the Flight ID. Therefore, a control head with Flight ID input such as the Honeywell PS-578 or Collins CTL-92E is not required.

The transponder automatically reads the Mode S address assigned to the aircraft. If the Mode S address falls within the range of addresses assigned to the U.S. by the International Civil Aeronautics Organization (ICAO), the MST-67A will automatically convert that Mode S address to the tail number of the aircraft and place it in the Flight ID register for compliance with Elementary Surveillance.

If the aircraft is operated where the Flight ID is not the tail number or the aircraft is not registered in the U.S., then a Flight ID control head is required to allow for manual entry of Flight ID. The flight ID may contain the company-assigned number for that particular flight such as an Airline name and Flight number.
For operators (usually commercial) whose Flight ID changes frequently, a control head such as Honeywell PS-578 or Collins CTL-92E provide for the entry of the Flight ID. The Flight ID may contain the company-assigned number for that particular flight such as an Airline name and Flight number. For civil operators whose Flight ID (usually the aircraft registration number) whose Flight ID does not change, a control with Flight ID input is not required.
Yes, the -008 can be installed into aircraft with non-integrated systems (i.e. -007 applicability; w/o Proline IV or 21) if they have the appropriate strap inputs set correctly.
Yes, anytime a transponder is removed or replaced an altitude correlation between what the transponder is reporting and what is displayed on the altimeter needs to be performed. This is outlined in FAA CFR Part 91.413. This regulation indicates that following any installation or maintenance of a transponder where data correspondence error could be introduced, the integrated system has been tested, inspected, and found to comply with paragraph (c), appendix E. Furthermore, these references indicate that an integration test between the altitude reporting equipment and transponder system must be conducted.

For complete information, please refer to these FAA regulations or contact Southeast Aerospace Tech Support team at shop@seaerospace.com.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

Utilizing more than one antenna to improve the quality and reliability of radio signal is called antenna diversity.

Heavy and/or faster aircraft utilize top and bottom antenna configurations to eliminate the possibility of signal blind spots caused by shadowing. Lighter, slower general aviation aircraft typically only have 1 antenna and do not require antenna diversity. Although not completely uniform, the transmission pattern of a typical antenna provides adequate radiation above and below in relation to most GA aircraft even when the antenna is on the bottom of the aircraft.
The Mode S aircraft identification code is listed on AC Form 8050-3, Certificate of Aircraft Registration, as the International Civil Aviation Organization (ICAO) Aircraft Address Code. If the aircraft registration does not contain this information, aircraft owners with a Mode S transponder can obtain an aircraft identification code from the FAA Aircraft Registry in Oklahoma City, Oklahoma. This may be accomplished by writing to the following FAA address:

Federal Aviation Administration
Aircraft Registration Branch AFS-750
P.O. Box 25504
Oklahoma City, OK 73125-0504

You may also call:
866-762-9434
405-954-3116

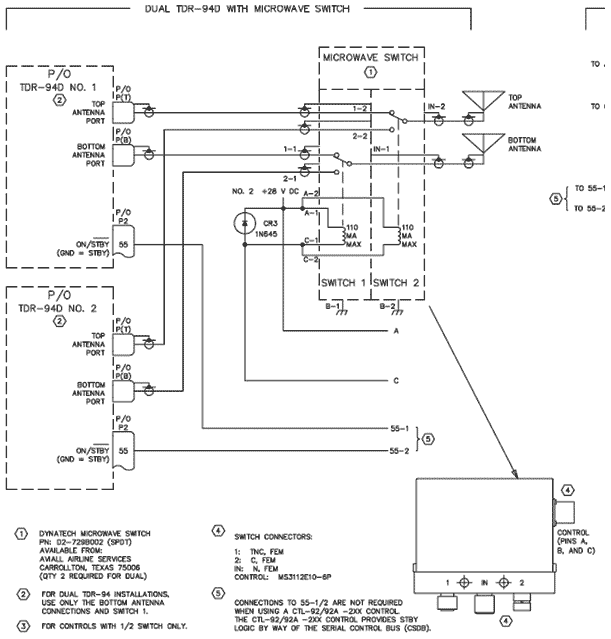

In installations where two TDR-94D transponders are used, but space is not available to install four antennas, special relays can be used to operate the two TDR-94D transponders with only two antennas. This configuration can also be used to operate two TDR-94 transponders with one antenna. The diagram below shows a Coaxial Switch from Ducommun (P/N: D2-729B002) completing the configuration. The described PN has been replaced by a more recent version, D2-729B003. This new version is available from Southeast Aerospace.

In relation to the transponder technology, a squawk refers to a response that a transmitter responder (i.e. transponder) is making to an interrogation from Air Traffic Control (ATC). In a classic Mode A/C transponder, a squawk response included very basic aircraft ID, general status, and pressure altitude information.

A squitter or squit is a transmission that frequently sends aircraft ID and position data while not being interrogated. In some Mode S transponders and ADS-B devices, the squit transmission can include up to almost 50 parameters including lat/long position, direction of flight, velocity, and more.

"As Removed" or condition "AR" parts are in the same condition as they were removed from an aircraft. The reasons for removal include aircraft upgrades, teardowns, or certain types of incidents. In most cases, AR parts have not been inspected or tested. They do not include airworthiness certification such as FAA Form 8130 or EASA Form 1. Southeast Aerospace encourages avionics in this condition to be tested and recertified before using in an aircraft.
