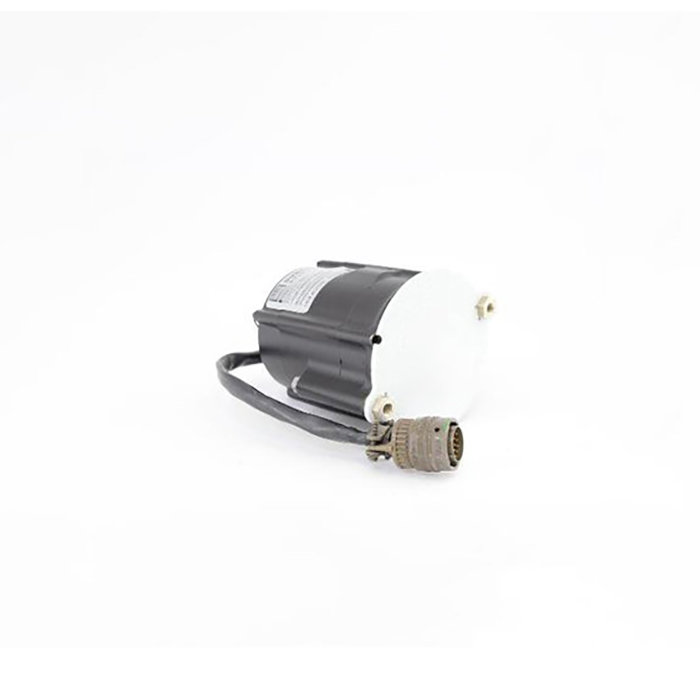

Picture of product SVO-85C

Part #: 622-6717-004

Model: SVO-85C

OEM:

Collins Aerospace

Desc:

Primary Servo

Part Number :


SVO-85C



FEATURES

  • The SVO-85( ) is a DC servo motor with dual rate feedback tachometers.
  • Motor is mechanically coupled to the servo capstan through a magnetic engage clutch
  • Servo type provides a choice of electrical harness interface such as standard unit connector or pendant cable
SPECIFICATIONS
Dimensions: 4.32in (109.7mm) W x 3.37in (86.6mm) H x 3.56in (90.4mm) L Weight: 6.6 lbs (3.00 kg) max
Temperature range: Operational -55° to +70° C (-67 to +158° F) Storage -55° to +85° C (-67° to +185° F) Altitude: 55,000 ft (16,800 m)
Output Torque: 100-200 in lbs. faa: C9c (Autopilot)
Environmental: SVO-85( )- 00X* DO-160A (A2F2/B/RY/ EXXXXXA/ BZ/AZZ), *SVO-85( )-10X Certified to DO-160C, A2F2/-BB/DY/E1RFXXXA/BZ/AZZWZXXB Mounting: Mounts to Collins
primary Lighting: 28 V DC, 77 W Lighting (56 W max torque 21 W clutch)
Part Number: Description:
622-6717-003 Servo Motor, 100-200 in lbs torque, servo mounted connector, 11.30 - 22.60 N-m
622-6717-004 Servo Motor, 100-200 in lbs torque, servo mounted connector, 11.30 - 22.60 N-m
622-6717-103 Servo Motor, 100-200 in lbs torque, servo mounted connector, pendant cable
622-6717-104 Servo Motor, 100-200 in lbs torque, pendant cable



Serial # 429
Condition OH
Mods 1,3
Tag Date 09/04/24
Shop Avionics Specialist Inc.
Warranty 6 Months
622-6717-004
- Primary Servo
Price Condition Status
$7,450.00 OH OUTRIGHT 1 IN STOCK
$3,950.00 OH EXCHANGE 1 IN STOCK
622-6717-003
- Primary Servo
Price Condition Status
RFQ RFQ RFQ
622-6717-104
- Primary Servo
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

No, because an autopilot system is installed under an aircraft STC or TC approval, whatever part number servo that is certified in that aircraft must be installed.  In addition, servos usually have different motor speeds for different part numbers. Therefore, not installing the same part number servo in the aircraft could produce an unsafe operating condition.

Please note that this is not in reference to some servo manufacturers superseding older legacy servos with newer models.  That is addressed in another FAQ.
