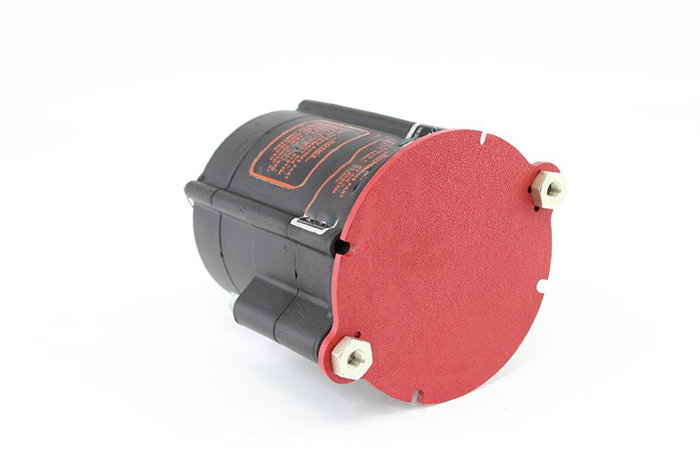

Picture of product SVO-85B

Part #:

Model: SVO-85B

OEM:

Collins Aerospace

Desc:

Primary Servo

Part Number :


SVO-85B

FEATURES

  •  Primary/Trim Servo with improved moisture resistance



SPECIFICATIONS

dimensions: 4.32 in (109.7 mm) W x 3.37 in (85.6 mm) H x 4.57 in (116.1 mm) L weight: 4.0 lbs (1.82 kg)
input watts: 77 W output torque: 50 to 110 in. lbs.
temperature range: Operating- -55° to +70° C (-67° to +158° F) Storage- -55° to +85° C (67° to +185° F) altitude: 55,000 ft (16,800 m) maximum
Part Number: Description:
622-5027-001 Primary Servo
622-5027-002 Primary Servo
622-5027-003 Primary Servo
622 5027-101 Primary Servo
622-5027-102 Primary Servo
622-5027-103 Primary Servo





622-5027-001
- Primary Servo

NSN: 1560-01-646-3947

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-5027-002
- Primary Servo
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-5027-003
- Primary Servo
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-5027-101
- Primary Servo

NSN: 1650-01-526-4506

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-5027-102
- Primary Servo
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-5027-103
- Primary Servo
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

No, because an autopilot system is installed under an aircraft STC or TC approval, whatever part number servo that is certified in that aircraft must be installed.  In addition, servos usually have different motor speeds for different part numbers. Therefore, not installing the same part number servo in the aircraft could produce an unsafe operating condition.

Please note that this is not in reference to some servo manufacturers superseding older legacy servos with newer models.  That is addressed in another FAQ.
