Part #: 622-7309-101
Model: DME-442
NSN: |
5895-01-459-8627 |
OEM: |
Collins Aerospace |
Desc: |
DME Transceiver |
Select part number above to view pricing and availability.

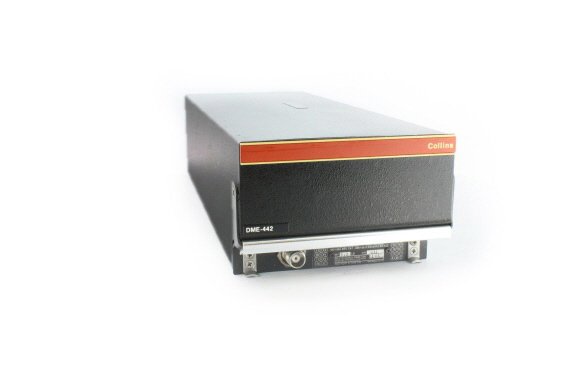

DME-442
- Proline IV (4) remote-mounted DME transceiver designed for business and regional air carrier aircraft
- Tracks three DME stations simultaneously providing accurate updates of aircraft position
- Built-in diagnostics to simplify maintenance and reduce down time
- Station identifier output to IND-42A or other compatible indicator automatically provides direct confirmation of information source
- Exclusive echo monitor circuits prevent display of erroneous data from multipath reflected signals
- Solid mechanical construction plus greatly simplified electrical adjustments permit quick, easy maintenance
- Fewer parts, lower power dissipation and thermally sound construction provide a significant increase in reliability
- Input ports can be configured for Commercial Standard Data Bus (CSDB) or ARINC 429
- Typical components used with DME-442 include IND-42A Indicator and ANT-42 L-Band Antenna
- For complete three-channel capability, the DME must be used with dual CTL-32 and IND-42A
| TSO: | C66b, DO-178 Essential category | EUROCAE | MPS-WG 8/1/71, ED-14A,ED-12 |
| DEUTSCHE BUNDESPOST FTZ: | LBA400209X | Environmental: | DO-160A/A2E1/B/JY/EXXXXXZ/BZ/ AZZ |
| Size: | 1/2 ATR short, dwarf | Dimensions: | 3.312"H x 4.875"W x 14.0"L |
| Weight: | 5.3 lbs. | Temperature: | -55 to 70C (operational) |
| Altitude: | 70000 ft. | Channels: | 252-VORTAC,DME,TACAN |
| Power Requirements: | 28 V DC 0.7 A | Frequency Range: | 962-1213 MHz (receive); 1025-1150 MHz (transmit) |
| Power Output: | 300 W min | Frequency Stability: | ±100 kHz |
| Sensitivity: | -85 dBm | Lock On Time: | Less than 1 s |
| Audio Output: | 50 mW into 600 Ohms | Serial Output: | Distance, frequency, ground speed, time-to-station, station identifier, diagnostics |
| Part Number | DME Transceiver Description: |
|---|---|
| 622-7309-001 | original production unit; superceded by -101 |
| 622-7309-101 | current production unit with updated I/O processor video card assembly |
| Serial # | 1222 |
|---|---|
| Condition | OH |
| Mods | 1-4 |
| Tag Date | 11/08/24 |
| Shop | Southeast Aerospace Inc. |
| Warranty | 6 Months |
NSN: 5895-01-459-8627
| Price | Condition | Status |
|---|---|---|
| $2,450.00 | OH OUTRIGHT | 1 IN STOCK |
| $1,650.00 | OH EXCHANGE | 1 IN STOCK |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
Why do some parts indicate "REQUEST" or “RFQ” on the Southeast Aerospace website?
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
Are SEA's Exchange prices negotiable?
Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.
