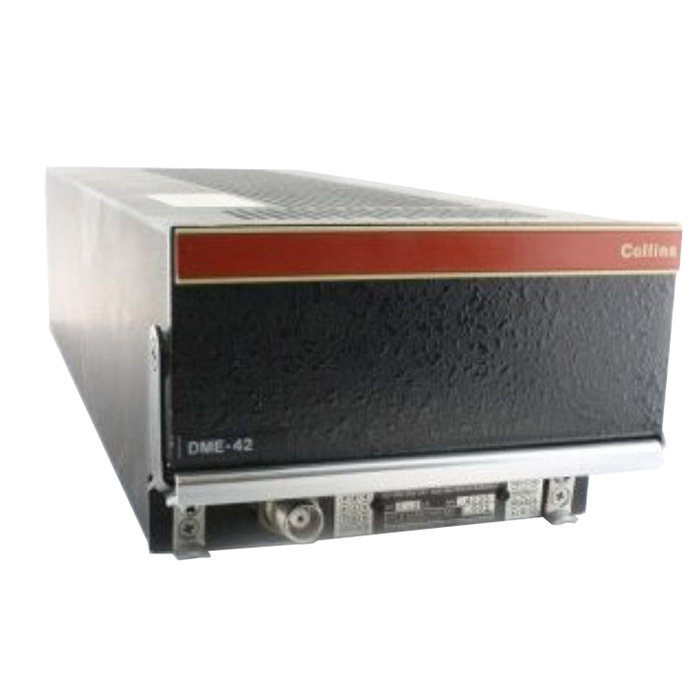

360 degree product image of DME-42
360
360 image holder for DME-42
360 degree product image thumbnail of DME-42
360

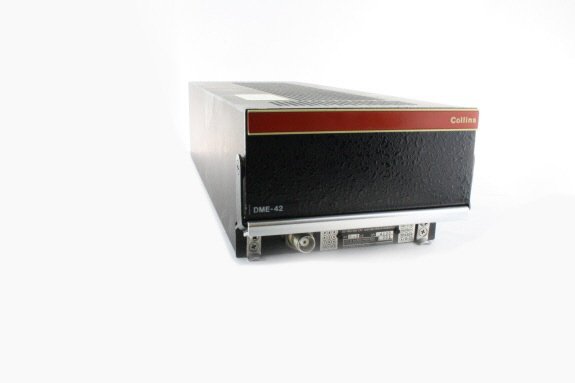

Thumbnail product image of DME-42

Part #: 622-6263-001

Model: DME-42

NSN:

5895-01-304-3814

OEM:

Collins Aerospace

Desc:

DME Transceiver
Part Number :


DME-42
FEATURES
  • Proline II remote-mounted DME transceiver specifically designed for general aviation aircraft
  • Fully solid-state unit
  • Lightweight
  • Measures slant range distance from aircraft to ground station and displays distance in nautical miles on companion IND-42A and IND-42C DME indicators
  • -003 unit can display the distance and other data from any of three channels when used with two CTL-32 Nav controls
  • 300 watts power output
  • Serial data tuning for tuning with Long Range Navigation Systems
SPECIFICATIONS
TSO: C66b, DO-151A, DO-160A, DO-178 EUROCAE MPS-WG8/1/71; ED-14A; ED-12
DEUTSCHE BUNDESPOST FTZ: LB 414/84 ARINC: 410 (tuning); 568-5 (serial output)
Environmental: DO-160A, categories /A2E1/B/ JY/EXXXXXZ/BZ/AZZ; EUROCAE ED-14A Dimensions: 3.312"H x 4.875"W x 14.0"L
Weight: 5.4 lbs. Temperature: -55 to 70C (operational)
Altitude: 70000 ft. Channels: 252-VORTAC,DME,TACAN
Analog Data Output: +40 mV/nmi, 256 nmi max Digital Data Ouput: RS-422A serial data bus (dual); contains distance, ground speed, time-to-station, and decoded station ident, and diagnotics; ARINC 568, 32-bit serial distance word
Ground Speed Accuracy: +-1% or +-1 knot, whichever is greater, 999 knots max Time-to-station Accuracy: +-1 min up to max of 120 min
Distance Loading: Max of five standard analog loads at 20 kohm each, or a max effective load of 4 kohm Sensitivity: -85 dBm with station reply eff=70% min
Selectivity: 6 dB max sensitivity variation for input signal within +-150 kHz of assigned frequency Frequency Stability: Less than +-100 kHz deviation from tuned frequency
Power Output: 300 watts minimum Tracking Velocity: 1000 knots maximum
RS-422A (Distance): 100 nmi, if valid RS-422A (GND SPD): 100 knots, if valid
RS-422A (TTS): 60 minutes, if valid RS-422A (Diagnostic): AOK if valid, or fault code if invalid
Part Number DME Transceiver Description:
622-6263-001 see above features, 1 channel tracking
622-6263-003 see above features, strap selected, channel 1,2, or 3 tracking



Serial # 5073
Condition OH
Mods 1-4
Tag Date 07/16/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 5078
Condition OH
Mods 1-4
Tag Date 07/16/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
622-6263-001
- DME Transceiver

NSN: 5895-01-304-3814

Price Condition Status
$1,975.00 OH OUTRIGHT 2 IN STOCK
622-6263-003
- DME Transceiver

NSN: 5895-01-304-3814

Price Condition Status
$2,250.00 OH OUTRIGHT 2 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The Collins DME-42 is a 3 channel DME receiving. For the -001 version, Channel 1 is capable of 2-out-of 5 tuning (2x5) while Channels 2,3 are capable of CSDB tuning. For the -003 version, all 3 channels are capable of either 2x5 or CSDB tuning.

Negotiating the exchange price of a unit only limits the allowable repair cap for the core unit. Southeast Aerospace's exchange transactions are based on the return of economically repairable core unit. Once the core is received and evaluated, the core repair cost incurred by SEA cannot exceed 75% of the original exchange price. That is, it cannot cost SEA more than 75% of the original OH/SV exchange price collected from the customer. Therefore, when and if an SEA exchange price is discounted, there is a risk that additional charges may be assessed once the core is returned and evaluated.

While Collins Service Bulletin DME-42-34-07 addresses this optional modification, it is not feasible to perform the conversion on a -001 unit. The easiest way to perform this conversion is to change the I/O Video Circuit Card P/N 647-6678-001/002 to the -004 version. However, the 647-6678-004 is no longer available from Collins. The other way to perform this modification is to convert the -001/002 boards to be functionally equivalent to the -004 status. Unfortunately, this modification consists of replacing almost 10 parts on the -001/002 board and adding up to 22 jumper wires which then creates a very unappealing situation in the unit. Two circuit cards are made as well.

If you require DME-42 P/N 622-6263-003, Southeast Aerospace recommends simply exchanging your -001 for a -003 unit. Please contact our Part Sales dept for pricing.
Yes, if the DME option for the G1000 is selected, then the DME channel 1 audio output level must be adjusted to 4.46 Vpp + 0.10 Vpp. The adjustment procedure is indicated in the DME-42 repair manual maintenance section and should be carried out by an authorized Collins service center such as Southeast Aerospace.
