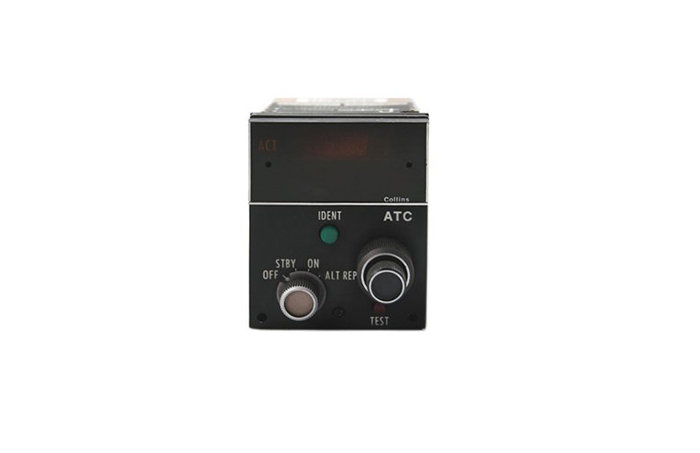

Picture of product CTL-90

Part #: 622-4527-008

Model: CTL-90

NSN:

5826-01-408-9327

OEM:

Collins Aerospace

Desc:

Transponder Control

Part Number :


CTL-90



FEATURES

  • Digital Display ATC Transponder Control
  • Self test feature
  • Typically used with TDR-90 transponder
  • Models available with black or gray bezel (see table below)
  • Models available with 5 or 28 volt, clear white or blue-white lighting (see table below)
  • Models available with variations of selections of OFF/STBY/ON/ALT-REP, power switch, and dual transponder control capability via 1-2 switch (see table below)
  • Models available with 28V REPLY lamp instead of 5V lamp (see table below)



SPECIFICATIONS

Weight: 1.4 lbs. Dimensions: 2.50"W x 3.125"H x 6.80"L
Related documents: FAA TSO C37b, C38b, C40a, C41c, C66a, C74c; RTCA DO-160 Env Cat. A2D1/B/PKS/EXXXXXZBAZZ ARINC Specification 410 Temperature: -20 to +70 C (operating)
Altitude: 51000 ft. max. Shock: 6 g for 11 ms
Explosion: Procedure I Electrical input: 24.8 to 30.3 V dc
Voltage spike: 600-V, 10-us spikes RF susceptibility: DO 160 paragraph 20.0
Af conducted susceptibility: DO 160 paragraph 18.1 Induced signal susceptibility: DO 160 paragraph 19.0
Emission of rf energy: DO 160 paragraph 21.0 Display type: Gas discharge
Display dim: Controlled by external 1 kohm potentiometer Tune outputs: Ground/open signal capable of sinking 100 mA dc
Channel Spacing: Code Frequency Range: 0000-7777 octal
Part Number: Description:
622-4527-001 5 Volt lighting, gray panel, STBY/ON/ALT-REP selections, NO power switch, NO 1-2 switch
622-4527-002 28 Volt lighting, gray panel, STBY/ON/ALT-REP selections, NO power switch, NO 1-2 switch
622-4527-003 5 Volt lighting, black panel, STBY/ON/ALT-REP selections, NO power switch, NO 1-2 switch
622-4527-004 28 Volt lighting, black panel, STBY/ON/ALT-REP selections, NO power switch, NO 1-2 switch
622-4527-005 5 Volt lighting, gray panel, OFF/STBY/ON/ALT-REP selections, power switch, NO 1-2 switch
622-4527-006 28 Volt lighting, gray panel, OFF/STBY/ON/ALT-REP selections, power switch, NO 1-2 switch
622-4527-007 5 Volt lighting, black panel, OFF/STBY/ON/ALT-REP selections, power switch, NO 1-2 switch
622-4527-008 28 Volt lighting, black panel, OFF/STBY/ON/ALT-REP selections, power switch, NO 1-2 switch
622-4527-009 5 Volt lighting, gray panel, STBY/ON/ALT-REP selections, NO power switch, 1-2 switch
622-4527-010 28 Volt lighting, gray panel, STBY/ON/ALT-REP selections, NO power switch, 1-2 switch
622-4527-011 5 Volt lighting, black panel, STBY/ON/ALT-REP selections, NO power switch, 1-2 switch
622-4527-012 28 Volt lighting, black panel, STBY/ON/ALT-REP selections, NO power switch, 1-2 switch
622-4527-013 5 Volt lighting, gray panel, OFF/STBY/ON/ALT-REP selections, power switch, 1-2 switch
622-4527-014 28 Volt lighting, gray panel, OFF/STBY/ON/ALT-REP selections, power switch, 1-2 switch
622-4527-015 5 Volt lighting, black panel, OFF/STBY/ON/ALT-REP selections, power switch, 1-2 switch
622-4527-016 28 Volt lighting, black panel, OFF/STBY/ON/ALT-REP selections, power switch, 1-2 switch
622-4527-017 Same as -013 but with blue-white instead of white lighting
622-4527-018 Same as -016 but with blue-white instead of white lighting
622-4527-019 Same as -018 but has 28V REPLY lamp instead of 5V lamp
622-4527-020 Same as -009 but with blue-white instead of white lighting, 28V REPLY lamp instead of 5V lamp, and legend above IDENT switch is IDENT/REPLY instead of just IDENT
622-4527-021 Same as -008 but with blue-white instead of white lighting and 28V REPLY lamp instead of 5V lamp


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



Serial # 9648
Condition SV
Mods 1-4
Tag Date 09/05/19
Shop Southeast Aerospace Inc.
Warranty 6 Months
622-4527-008
- Transponder Control

NSN: 5826-01-408-9327

Price Condition Status
$695.00 SV OUTRIGHT 1 IN STOCK
622-4527-005
- Transponder Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-4527-006
- Transponder Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-4527-007
- Transponder Control
Price Condition Status
$2,150.00 SV OUTRIGHT REQUEST LEAD TIME
622-4527-013
- Transponder Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-4527-014
- Transponder Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-4527-015
- Transponder Control

NSN: 5826-01-309-9755

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-4527-016
- Transponder Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-4527-017
- Transponder Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-4527-018
- Transponder Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-4527-019
- Transponder Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-4527-021
- Transponder Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The CTL-X0 is 30-40 years old. Service parts from Collins are either no longer available or extremely expensive. It is not cost effective nor possible in some situations to continue to utilize the CTL-X0 controls in your aircraft. Southeast Aerospace recommends converting the CTL-X0 controls over to the Collins CTL-X2 Proline II controls.

The CTL-X2 is not a direct replacement for the CTL-X0 controls. A connector change, CAD adapter, and locally fabricated panel filler plate are required for the change. A qualified avionics technician should perform this modification. While this is a moderately involved retrofit, it is a change that is eminent and will ultimately be required if you continue to use your original Proline I radios.

  • To convert from the CTL-20 Comm control, the CTL-22, CAD-31, mating connectors, and CAD bracket are required.
  • To convert from the CTL-30 Nav control, the CTL-32, CAD-31, mating connectors, and CAD bracket are required.
  • To convert from the CTL-60 ADF control, the CTL-62, CAD-62, mating connectors, and CAD bracket are required.
  • To convert from the CTL-90 Transponder control, the CTL-92, CAD-62, mating connectors, and CAD bracket are required.

For an exact SEA quote to convert from your CTL-X0 control, please provide the part number of your CTL-X0. Contact SEA with this information and an SEA rep will provide a quotation immediately.

Most of the Collins Proline I components were originally manufactured in the early 1970s. Collins has continued to produce some of the Proline I components by special order over the past 30 years however large scale production stopped many years ago. Most of the Collins Proline I product lines incorporates 1960s and 70s analog technology. Collins has superseded the Proline I product line several times with the Proline II, Proline IV, and Proline 21 lines. As a result, some service parts needed to maintain and repair original Collins Proline I components are no longer available. Therefore, you may experience limited to no warranty available and unreliability for many of the Proline I units.

Southeast Aerospace offers many affordable, upgradeable options that are available for aircraft with Collins Proline I. As avionics integration specialists and premiere Collins dealer, Southeast Aerospace is experienced and knowledgeable on all Collins Proline generations.

If you are interested in upgrading any of your original Collins Proline I systems, please contact us for the most reasonable, optimal choice available.
