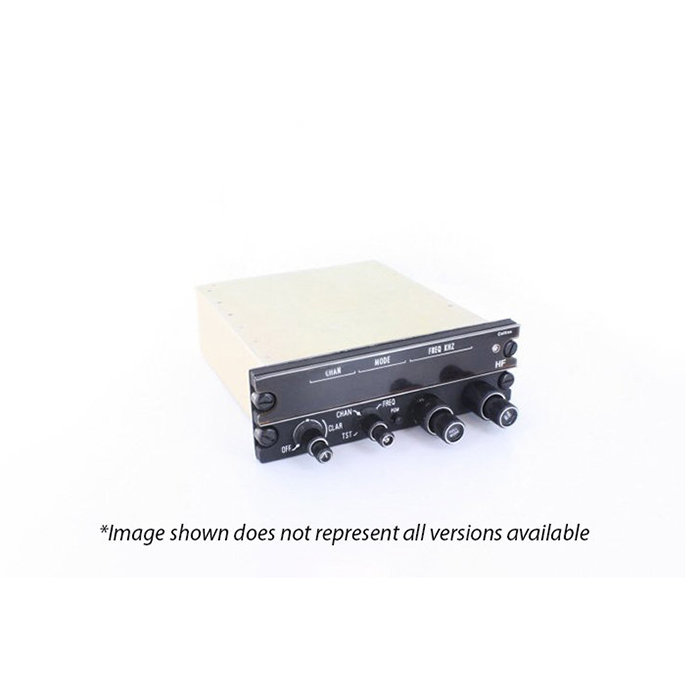

Picture of product CTL-230

Part #: 622-6614-003

Model: CTL-230

NSN:

5985-01-306-4533

OEM:

Collins Aerospace

Desc:

HF Control
Part Number :


CTL-230



FEATURES

  • Digital display control used in Collins HF-230 HF System
  • Contains 40 user-programmable channels that can be programmed on the ground or in the air without special tools or equipment
  • Provides automatic dimming display dimming or may be remotely dimmed by a dimming control
  • Models available with black or gray panel (see table below)
  • Models available with 5 or 28 Volt, blue-white or unfiltered white lighting (see table below)
  • Models available with preprogrammed ITU maritime frequencies (-02X status)- see table below



SPECIFICATIONS

TSO: C31c, C32c RTCA: DO-160A, DO-178
FCC: Type accepted, parts 83,87 Temperature: -20 to +70C (continuous)
Dimensions: 5.740"W x 1.865"H x 5.375"L Weight: 1.8 lbs.
Altitude: -15000 to 35000 ft. Audio Frequency Conducted: 0.56-V rms ripple from 200 to 1000 Hz, 1.4-V rms ripple from 1 to 15 kHz
Memory: All ITU and user-programmed channels, as well as the last discrete frequency, mode, and selected channel, are stored in nonvolatile memory Audible Noise: None
Warmup Time: None; however the TCR-230 requires 15 minutes Duty Cycle: Continuous
Part Number: Description:
622-6614-001 Black panel, blue-white lighting, 5 Volt
622-6614-002 Gray panel, blue-white lighting, 5 Volt
622-6614-003 Black panel, blue-white lighting, 28 Volt
622-6614-004 Gray panel, blue-white lighting, 28 Volt
622-6614-005 Black panel, unfiltered white lighting, 5 Volt
622-6614-006 Gray panel, unfiltered white lighting, 5 Volt
622-6614-007 Black panel, unfiltered white lighting, 28 Volt
622-6614-008 Gray panel, unfiltered white lighting, 28 Volt
622-6614-021 Black panel, blue-white lighting, 5 Volt, with ITU frequencies
622-6614-022 Gray panel, blue-white lighting, 5 Volt, with ITU frequencies
622-6614-023 Black panel, blue-white lighting, 28 Volt, with ITU frequencies
622-6614-024 Gray panel, blue-white lighting, 28 Volt, with ITU frequencies
622-6614-025 Black panel, unfiltered white lighting, 5 Volt, with ITU frequencies
622-6614-026 Gray panel, unfiltered white lighting, 5 Volt, with ITU frequencies
622-6614-027 Black panel, unfiltered white lighting, 28 Volt, with ITU frequencies
622-6614-028 Gray panel, unfiltered white lighting, 28 Volt, with ITU frequencies



Serial # 1238
Condition OH
Mods -
Tag Date 11/15/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
622-6614-003
- HF Control
Price Condition Status
$3,250.00 OH OUTRIGHT 1 IN STOCK
622-6614-001
- HF Control

NSN: 5985-01-306-4533

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-6614-002
- HF Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-6614-004
- HF Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-6614-005
- HF Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-6614-006
- HF Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-6614-022
- HF Control

NSN: 5895-01-560-5110

Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
622-6614-023
- HF Control

NSN: 5821-01-641-7772

Price Condition Status
$2,450.00 OH OUTRIGHT REQUEST LEAD TIME
$1,250.00 OH EXCHANGE REQUEST LEAD TIME
622-6614-024
- HF Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
622-6614-025
- HF Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
622-6614-027
- HF Control
Price Condition Status
REQUEST OH OUTRIGHT REQUEST LEAD TIME
