Part #:

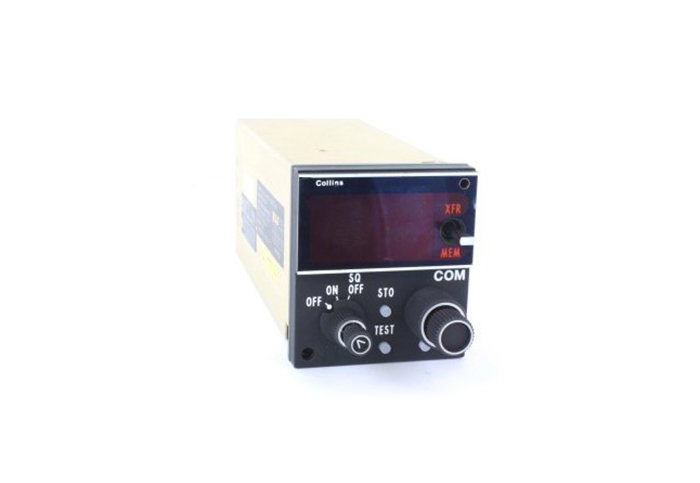

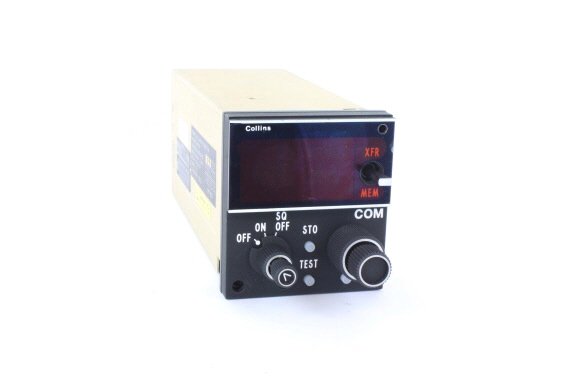

Model: CTL-22G

OEM:

Collins Aerospace

Desc:

G7622-101, Comm Control

Part Number :


CTL-22G
FEATURES
  • Digital Display Communications Control designed for use with Pro Line II communications transceivers such as VHF-21A, VHF-21B, VHF-22A and VHF-22B
  • G controls are direct fit and form replacement for existing original CTL-22 Controls
  • G controls offer new design incorporating all digital architecture and LED displays which enhance reliability and extend performance
  • G controls include lighting bus that can be strapped for either 5 or 28 volt applications
  • Serial tune control unit
  • Provides active and preset frequency display
  • Six frequency memory storage beside active and preset frequency
  • Squelch control (SQ OFF)
  • Models available with black or gray bezel (see table below)
  • Models available with variations of ON/OFF selection and Volume control (see table below)
SPECIFICATIONS
Weight: 1.2 lbs. Dimensions: 2.375"W x 2.625"H x 7.52"L
TSO: C37c, C34d, C36d, C38e, C40b, C66b, C41c, C74e RTCA Document: DO-160A
EUROCAE: MPS/WG 8/1/71; ED-14A DEUTSCHE BUNDESPOST FTZ: A446R2010
Environmental: DO-160A categories /A2C1/B/PKS/ EXXXXXZ/BZ/AZZ EUROCAE ED-14A Temperature: -30 to +70C
Altitude: 35000 ft. max. Shock: 6 g operational
Power Requirement: 27V dc (16-32) at 0.25A Lighting Power: 5V ac/dc. 350mA or 28Vdc, 100 mA
Lighting Color: Blue-white Display Type: Gas discharge
Brightness Control: Automatic or external potentiometer Electrical Input/Output: EIA RS-422A
Input/Output Format: Commercial Standard Digital Bus (CSDB) Frequency Range: 118.000-135.975MHz (normal) or 118.000-151.975 (strap option)
Part Number HF Communications Control Description:
822-2176-001 5/28 volt lighting, gray panel, OFF-ON-SQ OFF controls, NO volume control; Gables P/N G7622-101; Replaces CTL-22 P/N 622-6520-001
822-2176-003 5/28 volt lighting, black panel, OFF-ON-SQ OFF controls, NO volume control; Gables P/N G7622-102; Replaces CTL-22 P/N 622-6520-003/004
822-2176-005 5/28 volt lighting, gray panel, OFF-ON-SQ OFF controls, WITH volume control; Gables P/N G7622-103; Replaces CTL-22 P/N 622-6520-005/006
822-2176-007 5/28 volt lighting, black panel, OFF-ON-SQ OFF controls, WITH volume control; Gables P/N G7622-104; Replaces CTL-22 P/N 622-6520-007/008
822-2176-009 5 volt lighting, gray panel, NORM-SQ OFF controls, NO volume control; Gables P/N G7622-105; Replaces CTL-22 P/N 622-6520-009



822-2176-003
- G7622-102, Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-2176-007
- G7622-104 Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
822-2176-009
- G7622-105, Comm Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
