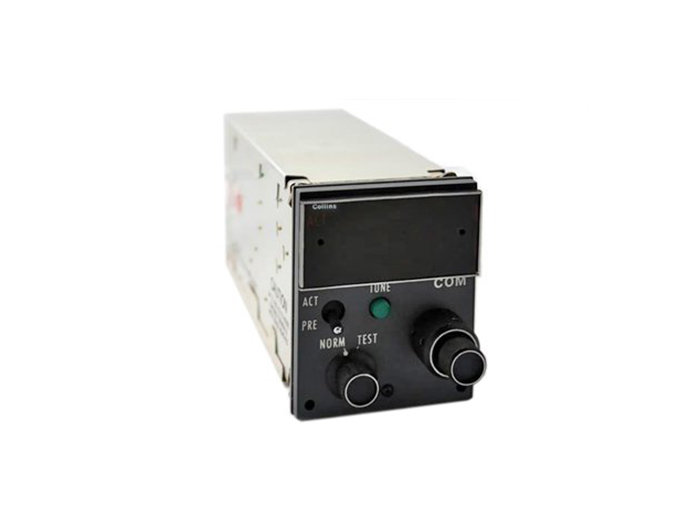

Picture of product CTL-20

Part #:

Model: CTL-20

OEM:

Collins Aerospace

Desc:

VHF Comm Control
Part Number :


CTL-20



FEATURES

  • Digital Display Communications Control
  • Provides active and preset frequency display as well as mode selection
  • Self test feature
  • Typically used with VHF-20 series communications transceiver
  • Models available with black or gray bezel (see table below)
  • Models available with 5 or 28 volt, clear white or blue-white lighting (see table below)
  • Models available with variations of ON/OFF selection and Volume control (see table below)
  • Models available with 720 or 760 frequency channel selection (see table below)

    PLEASE NOTE: All parallel tuning control heads, including the 313N( ) series, CTL-20, and CTL-21 controls, are not capable of providing 8.33 kHz tuning. These controls must be replaced with an 8.33 kHz capable control.



SPECIFICATIONS

Weight: 1.4 lbs. Dimensions: 2.50"W x 3.125"H x 6.80"L
Related documents: FAA TSO C37b, C38b, C40a, C41c, C66a, C74c; RTCA DO-160 Env Cat. A2D1/B/PKS/EXXXXXZBAZZ ARINC Specification 410 Temperature: -20 to +70 C (operating)
Altitude: 51000 ft. max. Shock: 6 g for 11 ms
Explosion: Procedure I Electrical input: 24.8 to 30.3 V dc
Voltage spike: 600-V, 10-us spikes RF susceptibility: DO 160 paragraph 20.0
Af conducted susceptibility: DO 160 paragraph 18.1 Induced signal susceptibility: DO 160 paragraph 19.0
Emission of rf energy: DO 160 paragraph 21.0 Display type: Gas discharge
Display dim: Controlled by external 1 kohm potentiometer Tune outputs: Ground/open signal capable of sinking 100 mA dc
Channel Spacing: 25 or 50 kHz (externally strappable)
Part Number:  Description:
622-4523-001 5 volt lighting, gray panel, NO power switch, NO volume control, 720 channels
622-4523-002 28V lighting, gray panel, NO power switch, NO volume control, 720 channels
622-4523-003 5V lighting, black panel, NO power switch, NO volume control, 720 channels
622-4523-004 28V lighting, black panel, NO power switch, NO volume control, 720 channels
622-4523-005 5V lighting, gray panel, With power switch, NO volume control, 720 channels
622-4523-006 28V lighting, gray panel, With power switch, NO volume control, 720 channels
622-4523-007 5V lighting, gray panel, With power switch, NO volume control, 720 channels
622-4523-008 28V lighting, black panel, With power switch, NO volume ctl, 720 channels
622-4523-009 5V lighting, gray panel, NO power switch, With volume control, 720 channels
622-4523-010 28V lighting, gray panel, NO power switch, With volume control, 720 channels
622-4523-011 5V lighting, black panel, NO power switch, With volume control, 720 channels
622-4523-012 28V lighting, black panel, NO power switch, With volume ctl, 720 channels
622-4523-013 5V lighting, gray panel, With power switch, With volume control, 720 channels
622-4523-014 28V lighting, gray panel, With power switch, With volume ctl, 720 channels
622-4523-015 5V lighting, black panel, With power switch, With volume ctl, 720 channels
622-4523-016 28V lighting, black panel, With power switch, With volume ctl, 720 channels
622-4523-017 Same as -013 version but with blue-white instead of white lighting
622-4523-018 Same as -016 version but with blue-white instead of white lighting
622-4523-201 5 volt lighting, gray panel, NO power switch, NO volume control, 760 channels
622-4523-202 28V lighting, gray panel, NO power switch, NO volume control, 760 channels
622-4523-203 5V lighting, black panel, NO power switch, NO volume control, 760 channels
622-4523-204 28V lighting, black panel, NO power switch, NO volume control, 760 channels
622-4523-205 5V lighting, gray panel, With power switch, NO volume control, 760 channels
622-4523-206 28V lighting, gray panel, With power switch, NO volume control, 760 channels
622-4523-207 5V lighting, gray panel, With power switch, NO volume control, 760 channels
622-4523-208 28V lighting, black panel, With power switch, NO volume ctl, 760 channels
622-4523-209 5V lighting, gray panel, NO power switch, With volume control, 760 channels
622-4523-210 28V lighting, gray panel, NO power switch, With volume control, 760 channels
622-4523-211 5V lighting, black panel, NO power switch, With volume control, 760 channels
622-4523-212 28V lighting, black panel, NO power switch, With volume ctl, 760 channels
622-4523-213 5V lighting, gray panel, With power switch, With volume control, 760 channels
622-4523-214 28V lighting, gray panel, With power switch, With volume ctl, 760 channels
622-4523-215 5V lighting, black panel, With power switch, With volume ctl, 760 channels
622-4523-216 28V lighting, black panel, With power switch, With volume ctl, 760 channels
622-4523-217 Same as -213 version but with blue-white instead of white lighting
622-4523-218 Same as -216 version but with blue-white instead of white lighting


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET
