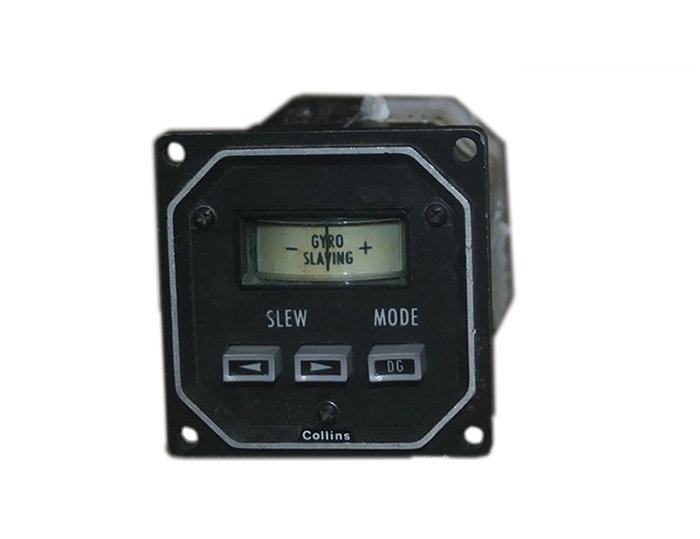

Picture of product CCU-65

Part #:

Model: CCU-65

OEM:

Collins Aerospace

Desc:

Compensator Unit

Part Number :



CCU-65



FEATURES

  • Control and Compensation unit used in Collins MCS-65 Magnetic Compass System
  • Used in conjunction with FDU-70 Flux Detector Unit and DGS-65 Directional Gyro
  • Provides electrical compensation for flux detector errors caused by the aircraft altering the earth's magnetic field
  • Includes slaving meter, DG mode select button, and two manual slewing buttons
  • Versions available with DG mode output (see table below)
  • Versions available with 5 or 28 volt lighting (see table below)
  • Versions available with black or gray bezel
  • Version available with flangeless bezel



SPECIFICATIONS
Dimensions: 2.375"W x 2.375"H x 3.110"L Weight: 0.5 lbs.
TSO: C6c Temperature: -20 to +55C (continuous)
Altitude: up to 35000 ft. EFIS DG Mode: Connected to S4, a 2-position, normally open pushbutton switch; when closed, applies +28V dc from P1-23 (used on 622-6135-01X only)
Part Number:  Description:
622-6135-001 5V lighting, Gray bezel
622-6135-002 28V lighting, Gray bezel
622-6135-003 5V lighting, Black bezel
622-6135-004 28V lighting, Black bezel
622-6135-005 5V lighting, Flangeless bezel
622-6135-011 5V lighting, Gray bezel, with DG mode outpu
622-6135-012 28V lighting, Gray bezel, with DG mode outpu
622-6135-013 5V lighting, Black bezel, with DG mode outpu
622-6135-014 28V lighting, Black bezel, with DG mode outpu
622-6135-015 5V lighting, Flangeless bezel, with DG mode outpu



622-6135-013
- Control/Compensator Unit
Price Condition Status
REQUEST AR OUTRIGHT 2 IN STOCK
622-6135-001
- Control/Compensation Unit

NSN: 6605-01-290-2602

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-6135-011
- Control/Compensation Unit

NSN: 1270-01-342-1396

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
622-6135-012
- Control/Compensator Unit

NSN: 6605-01-608-5111

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
622-6135-014
- Compass Compensator Unit
Price Condition Status
$475.00 SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

"As Removed" or condition "AR" parts are in the same condition as they were removed from an aircraft. The reasons for removal include aircraft upgrades, teardowns, or certain types of incidents. In most cases, AR parts have not been inspected or tested. They do not include airworthiness certification such as FAA Form 8130 or EASA Form 1. Southeast Aerospace encourages avionics in this condition to be tested and recertified before using in an aircraft.
