Part #: 622-2363-001

Model: ANT-60A

NSN:

5985-01-112-8057

OEM:

Collins Aerospace

Desc:

ADF Antenna

Part Number :
Rockwell Collins Logo

ANT-60A

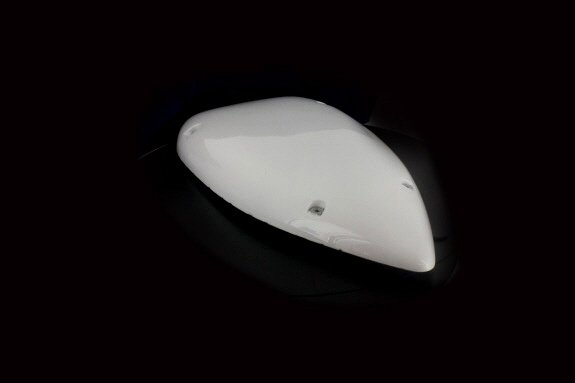

FEATURES

  • Integrated combined sense and loop antenna used with ADF-60A ADF receivers
  • RF preamplifier with 50 ohm output
  • Tear-shaped fiber-glass cover



SPECIFICATIONS

TSO: C41c, Env CAT/AD/A/JN/AAAXWXXXX Physical size: 16.5"L x 8.5"W x 1.7"H
Weight: 3.1 lbs. Temperature: -65 to +71 C
Part Number: Description:
622-2363-001 Standard version, ADF Antenna
622-2363-002 Special application Connector Pin Key, ADF Antenna



Serial # 30304
Condition SV
Mods None
Tag Date 12/09/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 8098
Condition SV
Mods None
Tag Date 09/05/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
622-2363-001
- ADF Antenna

NSN: 5985-01-112-8057

Price Condition Status
$1,450.00 SV OUTRIGHT 2 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

No, common ADF systems such as the Bendix/King KR-87, KDF-806 and Collins ADF-60A, ADF-650A utilize their own unique antennas within the systems (i.e. KA-44B, ANT-60A/B, ANT-650A respectively). In addition, in most cases, these antennas are different sizes and have different hole patterns from each other.
Rockwell Collins originally offered the following contour gaskets for mounting the ANT-60A on curved fuselages:
629-7897-001     32" inch radius
629-7897-002     47" inch radius
629-7897-003     62.5" inch radius
629-7897-004     38" inch radius
For flat fuselage installations, the original gasket (P/N 623-9614-001) supplied with the ANT-60A should be used.

Please note that availability of the contoured gaskets from Rockwell Collins may vary.
