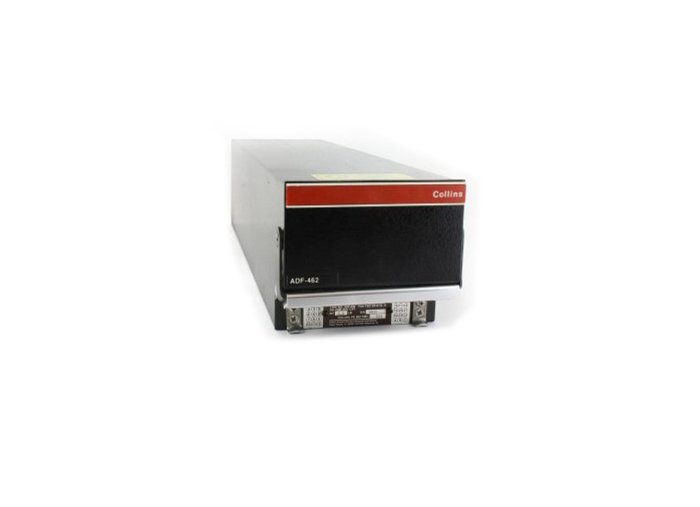

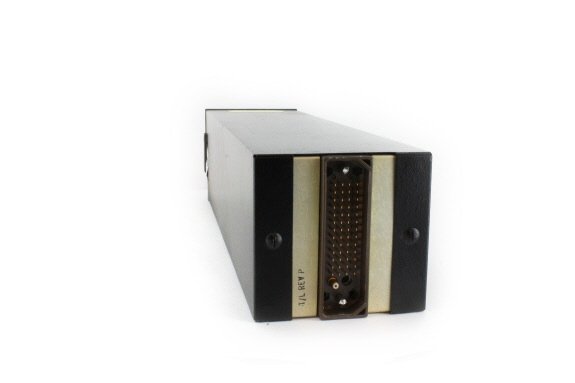

Part #: 622-7382-101

Model: ADF-462

NSN:

5821-01-327-9610

OEM:

Collins Aerospace

Desc:

ADF Receiver

Part Number :
Rockwell Collins Logo

ADF-462



FEATURES

  • Proline IV ADF Receiver
  • Provides both ARINC 429 and CSDB serial tuning capabilities
  • Proline II CTL-62 provides diagnostic read-out and CSDB tuning
  • Serial digital outputs offer compatibility with systems on current aircraft as well as systems under development
  • Internal diagnostic routines
  • Wide dynamic range
  • HF comm disable is built in



SPECIFICATIONS

TSO: C41d (Class A Environmental: DO-160B/A2E1/BB/JY/E2/XXXXXZ/ BZ/AZAAA
Weight: 3.7 lbs Temperature: -50 to 70C
Altitude: To 70000 ft. Power Requirements 28 V DC 0.6 A, including ANT
Controls: CSDB or ARINC 429 Range:: 190.0 to 1799.5 and 2179 to 2185 kHz
Tuning Increments: 500 Hz Capture Range: ±250 Hz
Operational Modes ANT, ADF, TONE (BFO/CW) Types of Reception: CW, MCW
Spurious response: -80 dB Audio output: 50 mW into 600 ohms
Accuracy: ±3° excluding quadrantal error Dimensions: 3.32"H x 3.80"H x 13.96"L
Part Number: Description:
622-7382-101 ADF Receiver



Serial # 1XY3K
Condition OH
Mods 1-9,11
Tag Date 11/08/24
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 2756
Condition OH
Mods 1-6
Tag Date 11/08/24
Shop Southeast Aero LLC
Warranty 6 Months
622-7382-101
- ADF Receiver

NSN: 5821-01-327-9610

Price Condition Status
$1,550.00 OH OUTRIGHT 2 IN STOCK
