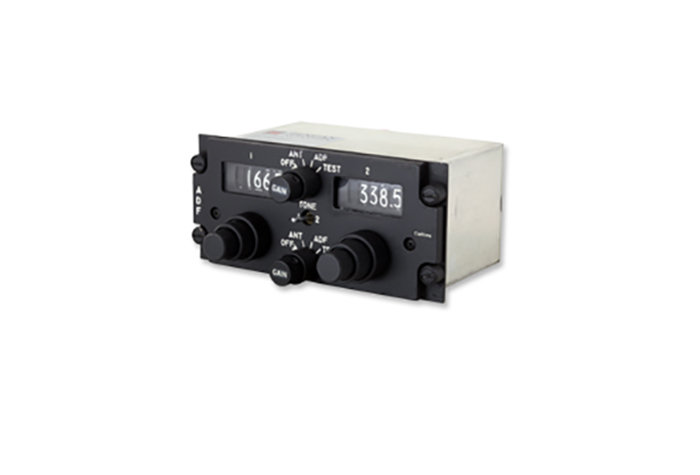

Picture of product 614L-13

Part #: 792-6275-002

Model: 614L-13

NSN:

5826-01-065-1759

OEM:

Collins Aerospace

Desc:

ADF Control

Part Number :


614L-13





.FEATURES

  • DZUS mounted, analog type ADF control permitting operation of all ADF receiver functions from remote location in aircraft
  • Operating frequency of ADF receiver can be selected in 0.5 kHz steps from 190 to 1749.5 kHz
  • Provides selection of ADF or ANT operating modes
  • Provides frequency indicating dial, series of three concentric frequency selection knobs, mode switch, TONE-OFF switch, TEST switch, Transfer switch and optional GAIN control on front panel (see table below)
  • Dual frequency capability through two indepedent ADF receivers
  • Models with combinations of gray or black knobs and panel colors (see table below)
  • Models available with 5 or 28 Volt, Clear white or Blue-white or Red lighting (see table below)
  • Models available with various switch positions and labeling (see table below)



SPECIFICATIONS
RTCA Document: DO-138 ARINC characteristic: 570
MIL specification: MIL-C-6781 Altitude: 45000 ft max
Temperature: -54 to 55C (operation) Dimensions: 5.75"W x 2.625"H x 2.5"H
Frequency selection: BCD binary code switching per ARINC 570 Duty Cycle: Continuous
Part Number: Description:
792-6275-001 Gray panel, black knobs, clear white 5-volt lighting, no audio control
792-6275-002 Black panel, black knobs, clear white 28 volt lighting, audio control
792-6275-003 Black panel & knobs, blue-white 5-volt lighting, audio control
792-6275-004 Gray panel, black knobs, blue white 5-volt lighting, audio control
792-6275-005 Gray panel & knobs, clear white 5-volt lighting, audio control
792-6275-006 Black panel & knobs, blue-white 28-volt lighting, no audio control
792-6275-007 Gray panel & knobs, clear white 28-volt lighting, audio control
792-6275-008 Black panel & knobs, red 28-volt lighting, no audio control



Serial # 7309
Condition AR
Mods -
Tag Date -
Shop -
Warranty -
792-6275-002
- ADF Control

NSN: 5826-01-065-1759

Price Condition Status
REQUEST AR OUTRIGHT 1 IN STOCK
792-6275-004
- ADF Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
792-6275-003
- ADF Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
792-6275-005
- ADF Control

NSN: 1680-01-669-6543

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
792-6275-007
- ADF Control

NSN: 5825-01-020-3865

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

"As Removed" or condition "AR" parts are in the same condition as they were removed from an aircraft. The reasons for removal include aircraft upgrades, teardowns, or certain types of incidents. In most cases, AR parts have not been inspected or tested. They do not include airworthiness certification such as FAA Form 8130 or EASA Form 1. Southeast Aerospace encourages avionics in this condition to be tested and recertified before using in an aircraft.
