Part #: 787-6366-013

Model: 614L-12

OEM:

Collins Aerospace

Desc:

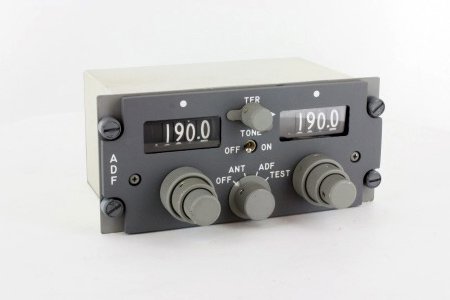

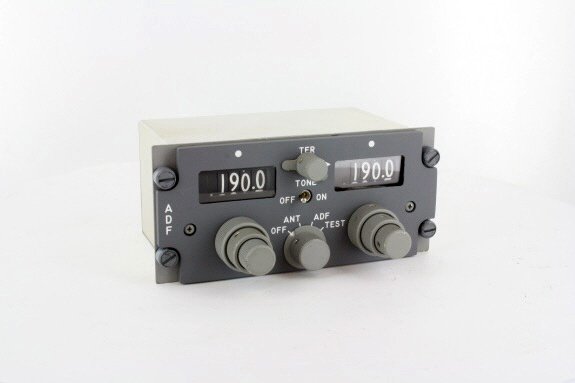

ADF Control

Part Number :


614L-12



FEATURES

  • DZUS mounted, analog type ADF control permitting operation of all ADF receiver functions from remote location in aircraft
  • Operating frequency of ADF receiver can be selected in 0.5 kHz steps from 190 to 1749.5 kHz
  • Provides selection of ADF or ANT operating modes
  • Provides frequency indicating dial, series of three concentric frequency selection knobs, mode switch, TONE-OFF switch, TEST switch, and optional GAIN control on front panel (see table below)
  • Dual frequency capability via transfer switch selecting one of two frequencies
  • Models with combinations of gray or black knobs and panel colors (see table below)
  • Models available with 5 or 28 Volt, Clear white or Blue-white or Red lighting (see table below)
  • Models available with various switch positions and labeling (see table below)



SPECIFICATIONS

RTCA Document: DO-138 ARINC characteristic: 570
MIL specification: MIL-C-6781 Altitude: 45000 ft max
Temperature: -54 to 55C (operation) Dimensions: 5.75"W x 2.625"H x 2.5"H
Frequency selection: BCD binary code switching per ARINC 570 Duty Cycle: Continuous
Part Number: Description:
787-6366-001 Gray panel, black knobs, blue-white 5-volt lighting, no audio control
787-6366-002 Gray panel, black knobs, blue-white 5-volt lighting, no audio control
787-6366-003 Black panel & knobs, blue-white 28-volt lighting, no audio control
787-6366-004 Gray panel, black knobs, blue white 5-volt lighting, no self-test and off mode, with audio control
787-6366-005 Gray panel, black knobs, clear white 5-volt lighting, audio control
787-6366-006 Black panel & knobs, blue-white 28-volt lighting, audio control
787-6366-007 Gray panel & knobs, blue white 5-volt lighting, no audio control, toggle type transfer switch labeled A1 on top and A2 on bottom
787-6366-008 Black panel, Black knobs, blue white 5-volt lighting, audio control
787-6366-009 Gray panel & knobs, blue white 5-volt lighting, audio control, function knob has index mark on panel bottom and cut out on knob to indicate equipment in ADF function
787-6366-010 Gray panel, black knobs, clear white 5-volt lighting, no audio control
787-6366-011 Black panel, gray knobs, blue white 5-volt lighting, audio control
787-6366-012 Gray panel, black knobs, blue white 5-volt lighting, audio control, vertical throw tone switch labeled TONE on the top and OFF on the botton, horizontal throw transfer switch, function knob has index mark on panel bottom and cut out on knob to indicate equipment in ADF function
787-6366-013 Gray panel & knobs, clear white 28-volt lighting, no audio control
787-6366-014 Gray panel & knobs, clear white 28-volt lighting, audio control
787-6366-015 Black panel & knobs, red 28-volt lighting, audio control
787-6366-016 Black panel & knobs, clear white 5-volt lighting, audio control
787-6366-017 Gray panel & knobs, blue white 28-volt lighting, audio control
787-6366-018 Same as -012 unit but has service bulletin which connects dial lamps to external ground


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



Serial # 2642
Condition OH
Mods 2
Tag Date 04/09/15
Shop Southeast Aerospace Inc.
Warranty 6 Months
787-6366-013
- ADF Control
Price Condition Status
$550.00 OH OUTRIGHT 1 IN STOCK
787-6366-002
- ADF Control
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
787-6366-003
- ADF Control

NSN: 5825-01-496-9315

Price Condition Status
REQUEST SVC OUTRIGHT REQUEST LEAD TIME
787-6366-006
- ADF Control

NSN: 5826-00-360-0117

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
787-6366-008
- ADF Control

NSN: 5826-01-198-9144

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
787-6366-012
- ADF Control
Price Condition Status
RFQ RFQ RFQ
787-6366-014
- ADF Control
Price Condition Status
RFQ RFQ RFQ
787-6366-015
- ADF Control

NSN: 5895-01-492-5339

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
